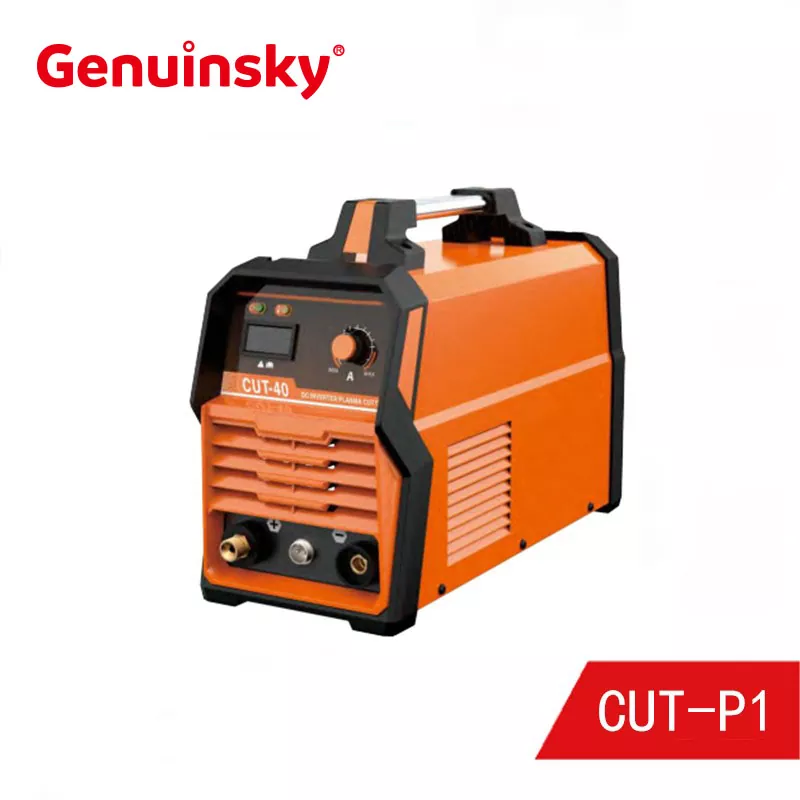

This CUT-P1 Inverter CUT Welding Machine adopt IGBT technology,high duty cycle. Cutting capacity increases 1.8 times higher in cutting speed comparing with flame cutter. Thick metal plate can be cut easily and quickly.Suitable for cutting stainless steel, copper, iron and aluminum metal etc. Simple operation and smooth cutting surface. HF touched Arc-starting cutting.
| MODEL | CUT-40 P1 |
| INPUT POWER | 220V 50/60HZ |
| RATED INPUT CAPACITY(KVA) | 4.6 |
| OPEN CIRCUIT VOLTAGE (V) | 220 |
| OUTPUT CURRENT RANGE(A) | 20-40 |
| RATED OUTPUT VOLTAGE(V) | 96 |
| RATED DUTY CYCLE @25℃ | 60% |
| MAX CUTTING THICKNESS(mm) | 12 |
| EFFICIENTY | 85% |
| PROTECTION GRADE | F |
| INSULATION CLASS | IP21S |
| N.W./G.W. (KG) | 10.5/11.1 |
| PACKAGE DIMENSION(mm) | 460×270×345 |
| LOADING QTY. (20FT/40FT/40HC) | 650/1300/1570 |
Different as gas cutting, inverter CUT machines are applying high pressure air to blow away the melted metal part. There's no obvious fire in the cutting process except some sparks. Consequently it looks much more safe.
CUT-P1 Inverter CUT Welding Machine. This IGBT plasma cutting machine achieves industrial grade cutting capabilities of "high efficiency, high precision, and multi material compatibility" through "high-frequency inverter technology+intelligent arc ignition system". Compared to flame cutting, it has a 1.8-fold increase in efficiency and better cutting quality, making it a revolutionary tool in the fields of metal processing, heavy manufacturing, and emergency maintenance. For enterprise users who pursue "cost reduction, efficiency improvement, safety and environmental protection" (such as sheet metal factories and shipbuilding factories), this model has significant advantages in long-term operating costs and process flexibility, making it an ideal choice to replace traditional cutting equipment.
