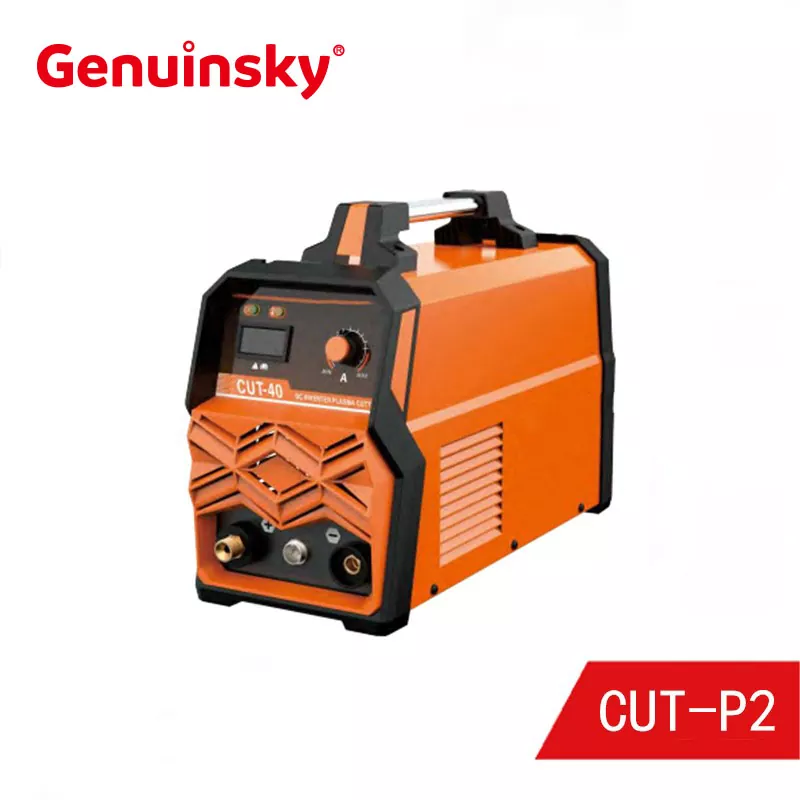

This CUT Inverter Welder IGBT P2 adopt IGBT technology,high duty cycle. Cutting capacity increases 1.8 times higher in cutting speed comparing with flame cutter. Thick metal plate can be cut easily and quickly.Suitable for cutting stainless steel, copper, iron and aluminum metal etc. Simple operation and smooth cutting surface. HF touched Arc-starting cutting.
| MODEL | CUT-40 P2 |
| INPUT POWER | 220V 50/60HZ |
| RATED INPUT CAPACITY(KVA) | 4.6 |
| OPEN CIRCUIT VOLTAGE (V) | 220 |
| OUTPUT CURRENT RANGE(A) | 20-40 |
| RATED OUTPUT VOLTAGE (V) | 96 |
| RATED DUTY CYCLE @25℃ | 60% |
| MAX CUTTING THICKNESS(mm) | 12 |
| EFFICIENTY | 85% |
| PROTECTION GRADE | F |
| INSULATION CLASS | IP21S |
| N.W./G.W. (KG) | 10.5/11.1 |
| PACKAGE DIMENSION(mm) | 460×270×345 |
| LOADING QTY. (20FT/40FT/40HC) | 650/1300/1570 |
IGBT full bridge inverter, converts AC power to DC through high-frequency switches (50-100kHz), and then inverts to high-frequency AC power to drive plasma arc, with conversion efficiency greater than 90%. Temporary load rate optimization, Using copper substrate heat dissipation and dual ball bearing fans, the temporary load rate reaches 100% @ 100A at 60 ℃ environment (traditional models usually have 60% @ 80A).
Contact arc ignition, After the cutting torch contacts the work piece, it pulls back 2-3mm and ionizes the air through high-frequency pulses (HF) to form a plasma arc, without the need for continuous high-frequency discharge; Continuous operation capability, supports 8-hour uninterrupted cutting (10mm carbon steel plate); Safety protection, after successful arc ignition, the high frequency will be automatically turned off to avoid electromagnetic interference.
