Six Models of Ball Valves Specialized for Air Compressors and Their Application Scenarios

The full series of Ball valve for air compressor recently released by the Genuinsky brand covers 6 models under the 1/4 specification, which can be widely used in gas switch, compressed air branch control, gas tank safety cut-off and other work in pneumatic systems. Scene.

The whole series of products are basically based on the 1/4-inch general specification, which can cover a variety of connection scenarios of the air compressor gas path. The basic types can be divided into six types.

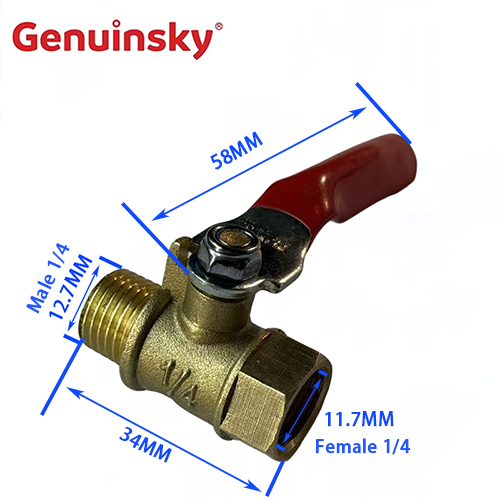

1. Male thread + internal thread model, one end of the product is Male thread 1/4, with a diameter of 12.7MM, and the other end is Female thread 1/4, with a diameter of 11.7MM, the total length of the valve body is 34MM, and the handle length is 58MM, which can be adapted to air compressors. The transfer of different-diameter pipelines.

2. Double pagoda model, the connector diameter at both ends is 8.5MM, the total length of the valve body is 55MM, and the handle length is 58MM. You can directly insert the pneumatic tool hose without additional joint assistance.

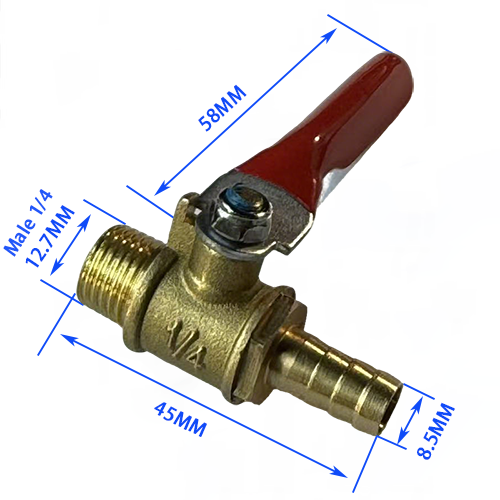

3. Male thread + pagoda model, one end of the product is Male thread 1/4, with a diameter of 12.7MM, and the other end is an 8.5MM pagoda head, the total length of the valve body is 45MM, and the handle length is 58MM, which takes into account equipment connection and hose expansion, mainly used for the pipeline of air compressors and pneumatic tools. Connect.

4. Double internal thread type, both ends are Female thread 1/4, the diameter is 11.7MM, the total length of the valve body is 33MM, and the length of the handle is 58MM, which can be adapted to the pipeline docking of the narrow internal space in the equipment.

5. Female thread + pagoda model, one end of the product is Female thread 1/4, with a diameter of 11.7MM, and the other end is an 8.5MM pagoda head, the total length of the valve body is 48MM, and the handle length is 60MM, which is mainly suitable for the internal thread interface of the air compressor and the transfer of the hose.

6. Double external thread type, both ends of the product are Male thread 1/4, the diameter is 12.7MM, the total length of the valve body is 39MM, and the length of the handle is 60MM, which is suitable for the serial connection of equipment with double external thread interfaces, and is mainly used for hard pipe docking of the main circuit of the air compressor.

As a professional supplier of pneumatic tools in China, Genuinsky is also very professional in the research and development and production of pneumatic accessories. Ball valve for air compressor has done a lot of optimization designs in details. The products are standardized and the size design is accurate. , the red ABS engineering plastic handle adopts ergonomic design and anti-slip treatment. Even if you wear protective gloves during use, it can be easily used. The weight of the whole series of ball valves is basically between 50-90g. It is made of brass material with certain hardness and corrosion resistance, which can maintain stability in work and avoid breaking. In the case of damage, at the same time, the weight of the body is not easy to cause the overload of the equipment.

The full range of Ball valve for air compressor can be adapted to a variety of scenarios, such as the pipeline branch control of the compressed air storage tank, the front shut-off valve of the cylinder and solenoid valve, the gas switch of the air cannon and the air drill, or the open-off control of the air outlet of the screw air compressor. The quarter-circle rotation structure can quickly complete the opening and breaking of the air flow. The design of the full-diameter valve core can allow the compressed air to pass through the valve smoothly, minimize the loss of air pressure, and improve the efficiency and stability of work.
