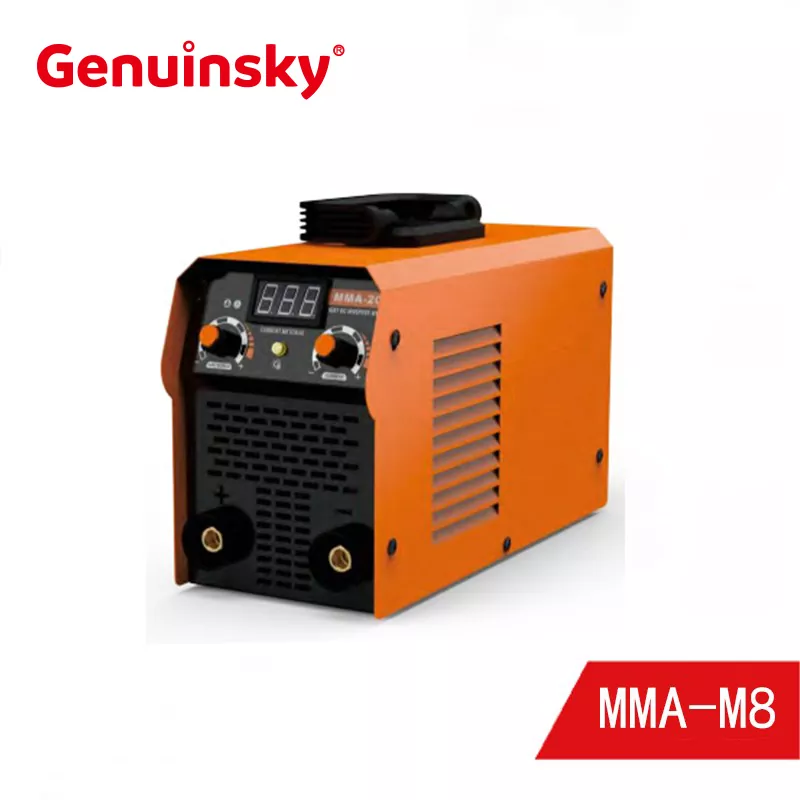

This MMA Inverter Welder IGBT ARC M8, adopt IGBT half-bridge technology. Portable size ARC welding machine, convenient to carry. High frequency inverter features quick arcing and less welding splash. Arc initiation easily and keep stable status for a long time. Fan cooling ensures better performance and durability.Protective circuit to prevent overheating and over current.
Higher current can achieve a decent welding effect for 5mm electrodes.
| MODEL | MMA-140 M8 | MMA-160 M8 | MMA-180 M8 | MMA-200 M8 | MMA-220 M8 |
| INPUT POWER | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |
| RATED INPUT CAPACITY(KVA) | 5.8 | 6.8 | 7.9 | 9.2 | 10.2 |
| RATED INPUT CURRENT (A) | 26.4 | 30.9 | 35.9 | 41.8 | 46.3 |
| OPEN CIRCUIT VOLTAGE (V) | 65 | 65 | 65 | 65 | 65 |
| OUTPUT CURRENT RANGE(A) | 20-140 | 20-160 | 20-180 | 20-200 | 20-220 |
| RATED DUTY CYCLE @25℃ | 50% | 50% | 40% | 40% | 30% |
| SUITABLE ELECTRODE(mm) | 1.6~4.0 | 1.6~4.0 | 1.6~4.0 | 1.6~5.0 | 1.6~5.0 |
| PROTECTION GRADE | F | F | F | F | F |
| INSULATION CLASS | IP215 | IP21S | IP21S | IP21S | IP21S |
| N.W/G.W. (KG) | 4.8/5.2 | 5/5.4 | 5.3/5.7 | 5.4/5.9 | 6/6.5 |
| PACKAGE DIMENSION (mm) | 320*200*300 | 320*200*300 | 320*200*300 | 340*200*310 | 340*200*310 |
| LOADING QTY. (20FT/40FT/40HC) | 1400/2800/3400 | 1400/2800/3400 | 1400/2800/3400 | 1300/2600/3200 | 1300/2600/3200 |
Arc ignition: After the welding rod comes into contact with the work piece, it quickly pulls open and generates an arc using short-circuit current (temperature can reach over 6000 ℃);
Metal melting: Arc thermal melting of welding rod metal and work piece surface, forming a molten pool;
Slag protection: Gas and slag are generated after the melting of the welding rod coating, and the air is isolated to prevent oxidation.
MMA Inverter Welder IGBT ARC M8. Manual ARC welding is one of the most traditional welding methods, which involves melting metal at high temperatures through the arc generated between the welding rod and the work piece.
Power supply: provides welding current;
Welding tongs: clamp the welding rod and conduct current;
Grounding clip: Connect the work piece to form a circuit.
