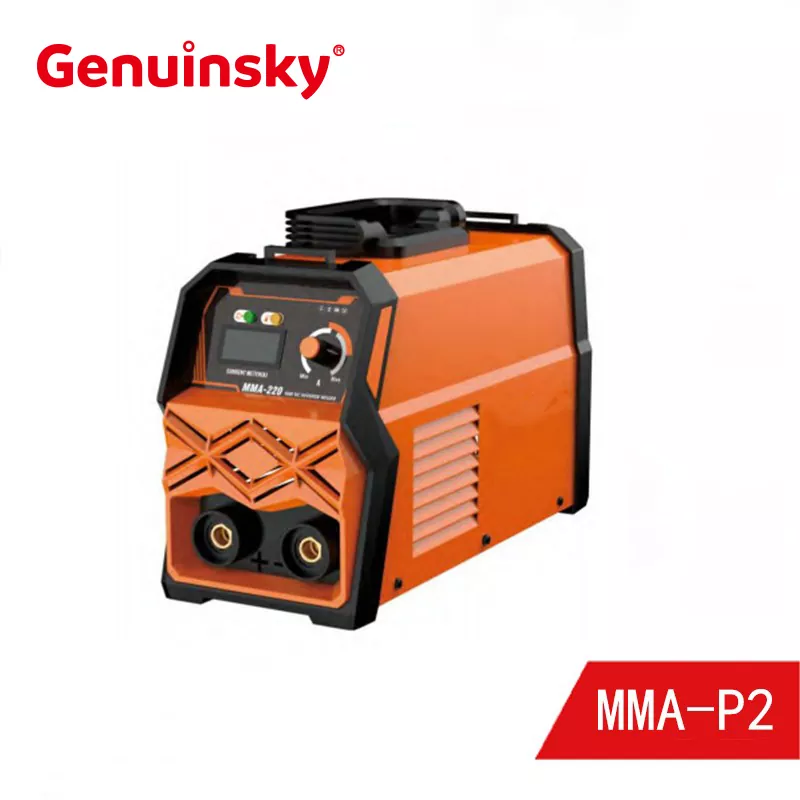

This MMA Inverter Welding Machine IGBT ARC P2, adopt IGBT full-bridge technology. Portable handheld size ARC welding machine, convenient to carry. High frequency inverter features, quick arcing and less welding splash. ARC initiation easily and keep stable status for long time. Low splash and smooth in weld joint. Fan cooled ensuring better performance and durability. Suitable for a wide input voltage range.Stable effect under low input voltage. Higher current can bring decent welding effect for 5mm electrodes.
| MODEL | MMA-140 P2 | MMA-160 P2 | MMA-180 P2 | MMA-200 P2 | MMA-220 P2 |
| INPUT POWER | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |
| RATED INPUT CAPACITY (KVA) | 5.8 | 6.8 | 7.9 | 9.2 | 10.2 |
| RATED INPUT CURRENT(A) | 26.4 | 30.9 | 35.9 | 41.8 | 46.3 |
| OPEN CIRCUIT VOLTAGE (V) | 65 | 65 | 65 | 65 | 65 |
| OUTPUT CURRENT RANGE(A) | 20-140 | 20-160 | 20-180 | 20-200 | 20-220 |
| RATED DUTY CYCLE @25℃ | 50% | 50% | 40% | 40% | 30% |
| SUITABLE ELECTRODE(mm) | 1.6~4.0 | 1.6~4.0 | 1.6~4.0 | 1.6~5.0 | 1.6~5.0 |
| PROTECTION GRADE | F | F | F | F | F |
| INSULATION CLASS | IP21S | IP21S | IP21S | IP21S | IP21S |
| N.W/G.W. (KG) | 4.8/5.2 | 5/5.4 | 5.3/5.7 | 5.4/5.9 | 6/6.5 |
| PACKAGE DIMENSION(mm) | 350*190*240 | 350*190*240 | 350*190*240 | 350*190*240 | 380*190*240 |
| LOADING QTY. (20FT/40FT/40HC) | 1750/3500/4250 | 1750/3500/4250 | 1750/3500/4250 | 1750/3500/4250 | 1600/3200/3900 |
IGBT full bridge inverter technology (compared to half bridge upgrade)
Adopting a full bridge topology structure, four sets of IGBT modules form symmetrical bridge arms, achieving higher power density and current stability through high-frequency alternating conduction (50-100kHz).
Power output improvement, The full bridge structure supports higher currents (peak up to 350A) and is compatible with 5.0mm welding rods, resulting in a 30% increase in penetration depth; Energy efficiency optimization, switch losses reduced by 15%, overall efficiency>90% (half bridge usually 85%); Industrial applications, welding of ship steel plates, splicing of heavy machinery structural components (8-15mm thickness).
MMA-P2 Inverter MMA Welding Machine, it’s wide voltage input, low splash characteristics, and digital scalability make it the preferred tool for industrial maintenance, heavy manufacturing, and field work scenarios. this model has significant competitiveness in efficiency, reliability, and long-term cost control.
