Micro Mini Connector Series

Genuinsky's Micro Mini Connector Series can provide more stable and efficient connection work for precision fluid transportation. Both automated industrial production lines and electronic manufacturing industries can be adapted and applied.

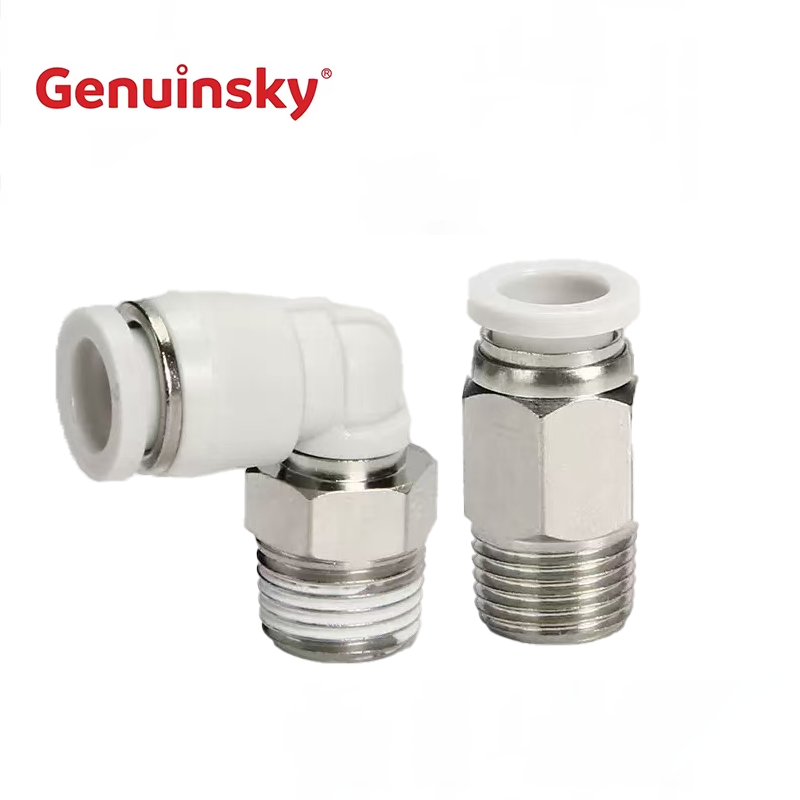

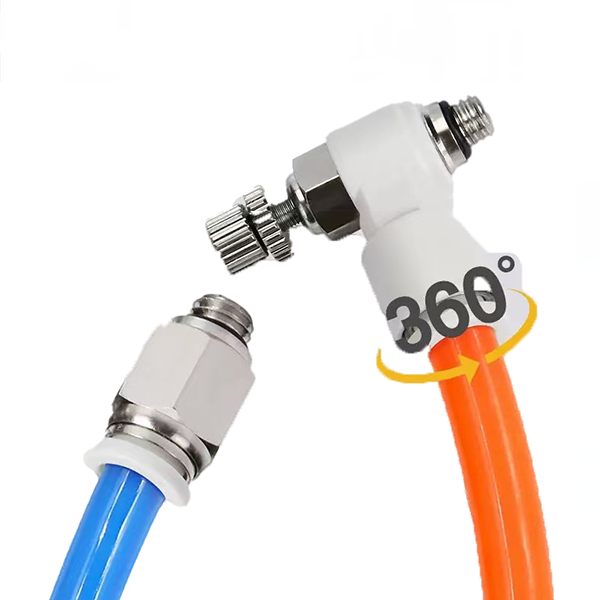

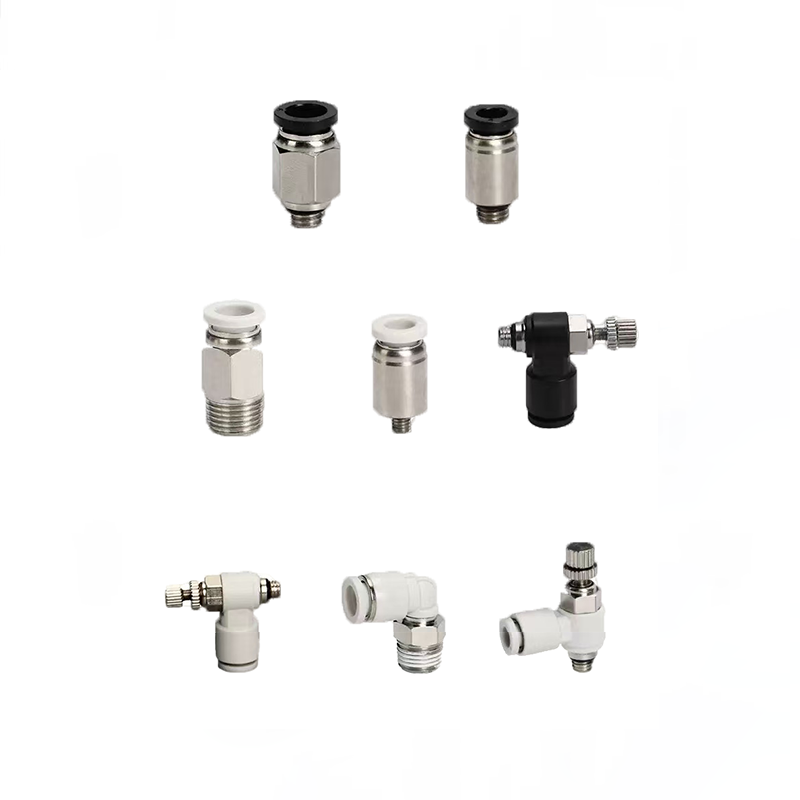

The design of Micro Mini Connector Series can accurately match the needs of industrial operations, and is specially designed for precision pneumatic systems. It contains a wide variety of products, including right-angle joints, through joints and throttle valves, which can be adapted to PU trachea and nylon tubes, which are the mainstream tubes on the market. Judging from the overall design of the product, the joint itself is a valve body made of nickel-plated copper. The nickel-plated copper material not only has the excellent sealing of copper material, but also has good corrosion resistance of nickel-plated layer.

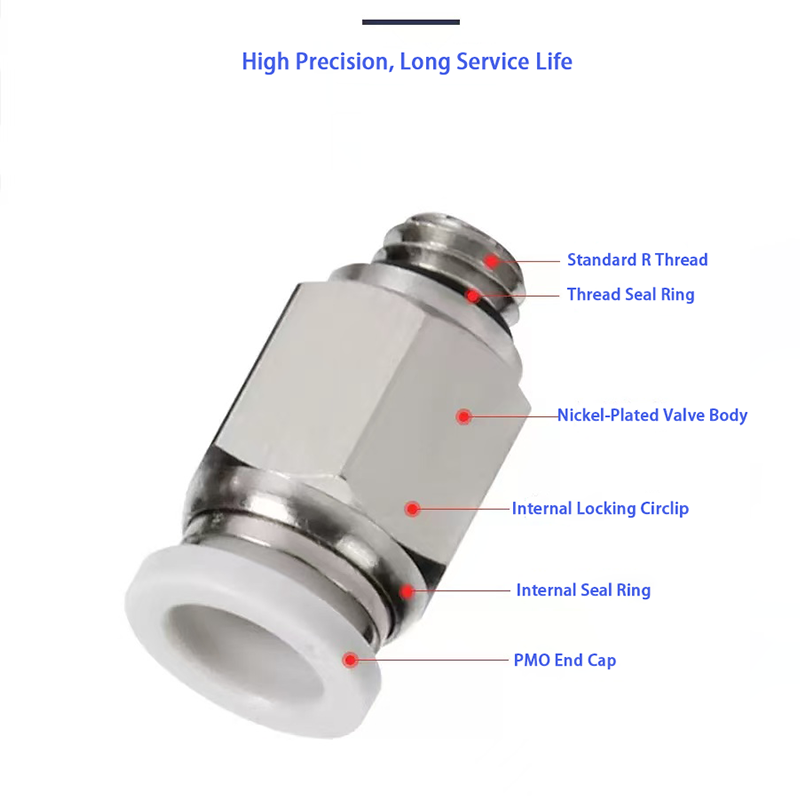

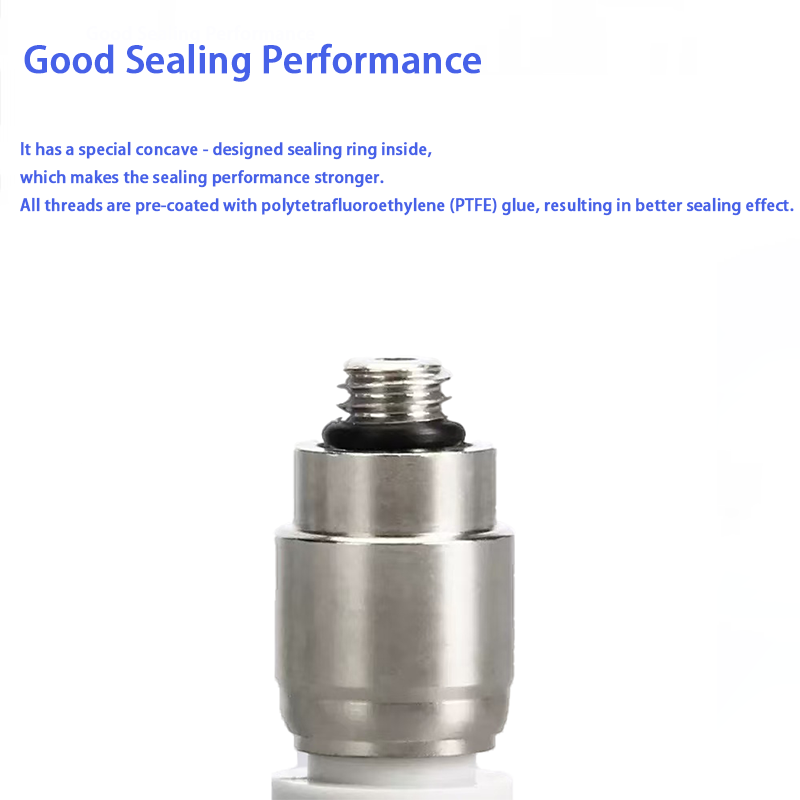

Therefore, even in the face of a humid or dusty environment for a long time, it can remain stable and not easy to rust, which will affect the stability of the connection. The interior adopts a special concave sealing ring, which has a larger contact area, so the fit is higher and the sealing is stronger. At the same time, the product itself is designed with the standard R thread of the general industrial thread. At the same time, the combination of the standard R thread and the internal locking spring avoids the wear and leakage caused by loosening of parts, which can add double protection to the sealing work, which also means that the service life of the product is greatly extended. Finally, the thread of the Micro Mini Connector Series is pre-coated with PTFE glue. Tetrafluoroethylene, a material known as the "plastic king", itself has very good chemical stability and certain lubricity, which means that it can not only optimize the sealing effect of the thread As a result, it can also reduce the wear of the thread to a certain extent, and further extend the service life of the product. This product has excellent sealing performance, so that it can maintain the sealing effect of "drip-proof" in high-frequency work under high-pressure working conditions of the pneumatic system. The tolerance range of Micro Mini Connector Series itself is in the temperature range of 0-60°C. In addition, the maximum guaranteed pressure can reach 1.32MPa, and the normal working pressure range is 0-0.9MPa, which can fully cover the stable operation of equipment that requires high-pressure working conditions such as pneumatic tools and automated cylinders. At the same time, in order to cover the needs of pipeline layout under complex working conditions, the joint with throttle valve supports 360° rotation adjustment, which means that it can break the limitation of the traditional joint angle fixation, and the direction of the trachea can be freely adjusted according to the installation space of the equipment. Finally, the connection of the product is also in a dual way. It can be connected by thread tightening, or it can also be a direct-plug connection. The direct plug-in type can support the locking of the trachea, and the tube can be pulled out by pressing the end cover. This simple connection method greatly improves work efficiency and saves installation and disassembly time.Genuinsky provides high-quality products with high precision, long life and strong sealing for precision fluid transmission.

From material selection to structural design, every detail of Micro Mini Connector Series shows the persistent pursuit of precision connection. GENUINSKY Company is a company specializing in the production of cleaning accessories. At the same time, the company integrates manufacturing, development and sales, with excellent quality, preferential prices and excellent after-sales service, so that users can buy more at ease.
