PH–SH Series C-Type Quick Couplings with JIS PT Thread

Genuinsky's newly launched PH–SH Series C-Type Quick Couplings with JIS PT Thread is a kind of pneumatic tool accessory and one of the important tools for pneumatic pipeline connection.

This series of products has complete specifications and can accurately match different pneumatic pipes. It can be roughly divided into 8mm, 10mm and 12mm inner diameters.

PH series (mauline head):

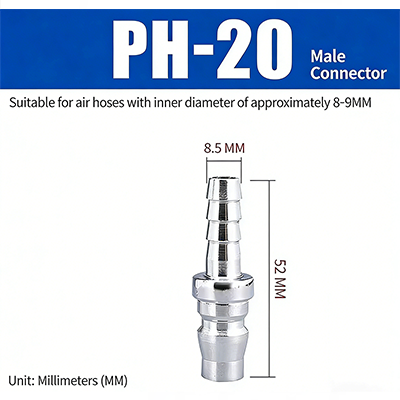

1. PH-20. It is suitable for trachea with an inner diameter of about 8-9 mm. The diameter of the connector tube end is 8.5 mm, and the overall length is 52 mm.

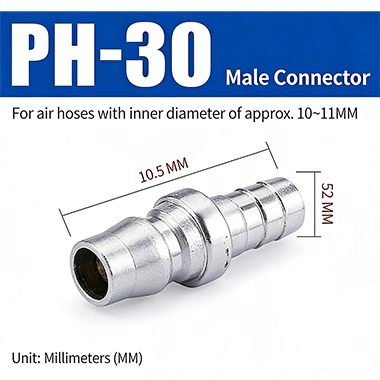

2. PH-30. It is suitable for the trachea with an inner diameter of about 10-11 mm, with a diameter of 10.5 mm at the end of the connector and a total length of 52 mm.

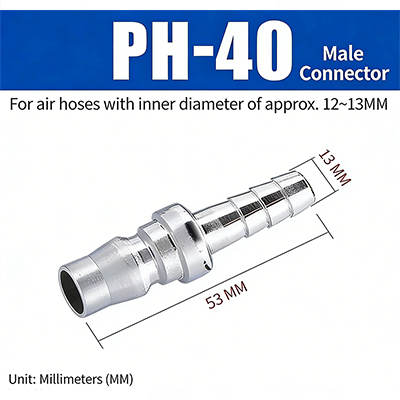

3. PH-40. It is suitable for trachea with an inner diameter of about 12-13 mm. The diameter of the joint tube end is 13 mm, and the overall length is 53 mm.

SH series (mother head):

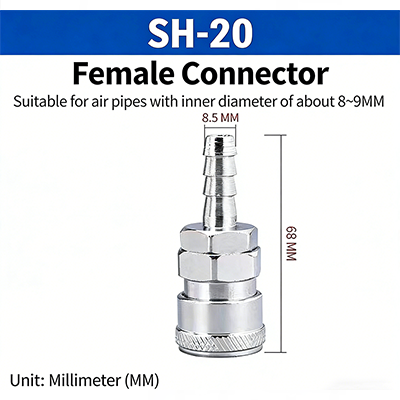

1. SH-20. It is suitable for the trachea with an inner diameter of about 8-9 mm, with a diameter of 8.5 mm at the end of the cannal and a total length of 68 mm.

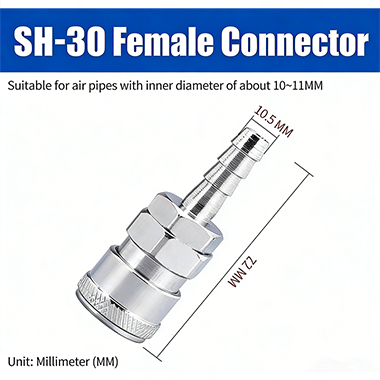

2. SH-30. It is suitable for the trachea with an inner diameter of about 10-11 mm, with a diameter of 10.5 mm at the end of the cannal and a total length of 72 mm.

3. SH-40. It is suitable for trachea with an inner diameter of about 12-13 mm, with a diameter of 13 mm at the end of the cannal and a total length of 53 mm.

PH–SH Series C-Type Quick Couplings with JIS PT Thread has a C-type quick-plug structure. The male and female heads can be matched at will, and it can be connected when plugged in, which is very convenient. The joint adopts surface electroplating treatment, with the internal copper core, which is not only corrosion-resistant, but also wear-resistant, which improves the durability of the joint and prolongs the service life.

As a professional supplier of pneumatic tool accessories in China, Genuinsky's products are standardized and guaranteed. With perfect pre-sale and after-sales service, you can rest assured to buy and use.

PH–SH Series C-Type Quick Couplings with JIS PT Thread produced by Genuinsky has a C-type quick-plug structure. The male and female heads can be matched at will, and the surface plating treatment and copper core make The product is more durable. As a professional supplier of pneumatic tool accessories in China, Genuinsky's products are standardized production. This series of products has complete specifications and can accurately match different pneumatic pipelines.
