PM–SM Series C-Type Quick Couplings with JIS PT Thread

Genuinsky's newly launched PM–SM Series C-Type Quick Couplings with JIS PT Thread is a kind of pneumatic tool accessory and one of the important tools for pneumatic pipeline connection.

This series of products has complete specifications, and the whole series adopts Japanese PT threads, which can be compatible with the interfaces of mainstream pneumatic equipment on the market and perfectly match different pneumatic pipelines.

PM series (mauline):

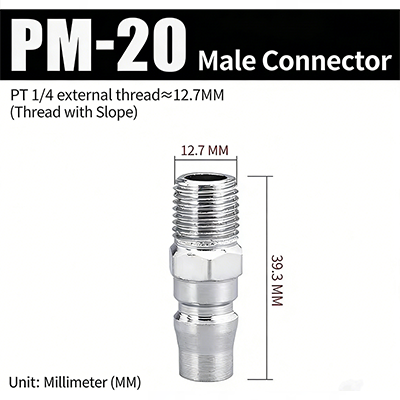

1. PM-20. The 1/4-inch external thread is a conical external thread structure. The diameter of the threaded part is 12.7 mm, and the total length of the product is 39.3 mm.

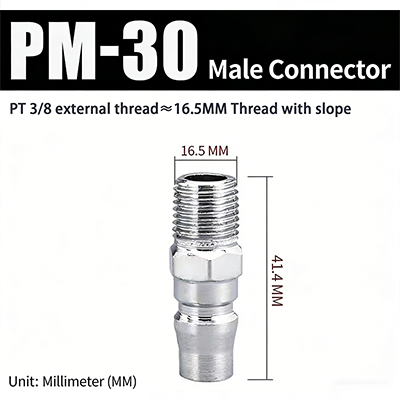

2. PM-30. The 3/8-inch male thread is a conical external thread structure. Thread diameter: 16.5mm, and the overall length is 41.4mm.

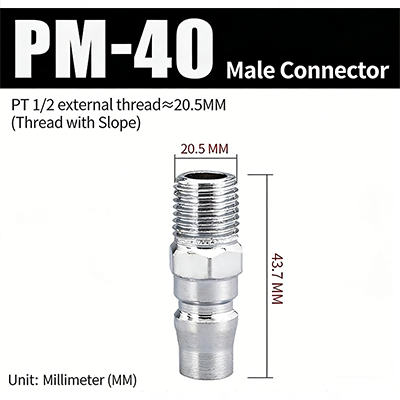

3. PM-40. 1/2-inch male connector, the thread diameter is 20.5 mm, and the overall length is 43.7 mm.

SM series (mother head):

1. SM-20. 1/2-inch male connector, the thread diameter is 20.5 mm, and the overall length is 43.7 mm.

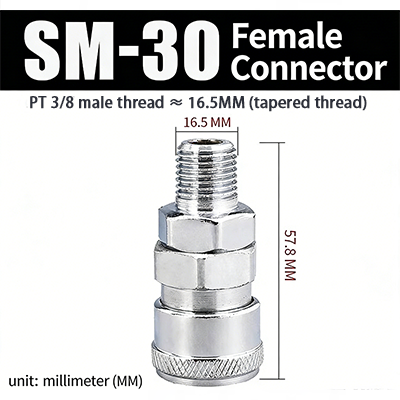

2. SM-30. The 3/8-inch male thread is a conical external thread structure with a thread diameter of 16.5 mm and an overall length of 57.8 mm.

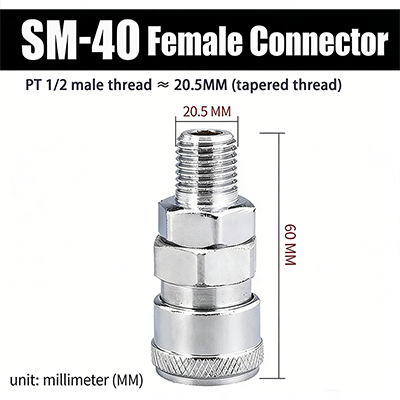

3. SM-40. 1/2-inch external thread is a conical thread with a thread diameter of 20.5 mm and an overall length of 60 mm.

PM–SM Series C-Type Quick Couplings with JIS PT Thread has a C-type quick-plug structure. The male and female heads can be matched at will, and it can be plugged in and connected, which is very convenient. The joint adopts surface electroplating treatment, with the internal copper core, which is not only corrosion-resistant, but also wear-resistant, which improves the durability of the joint and prolongs the service life.

As a professional supplier of pneumatic tool accessories in China, Genuinsky's products are standardized and guaranteed. With perfect pre-sale and after-sales service, you can rest assured to buy and use.
