PP–SP Series C-Type Quick Couplings with JIS PT Thread

Genuinsky's newly launched PP–SP Series C-Type Quick Couplings with JIS PT Thread is a kind of pneumatic tool accessory and one of the important tools for pneumatic pipeline connection.

This series of product specifications is complete, which can accurately match different pneumatic pipelines, and can be roughly divided into trachea with outer diameters of 8MM, 10MM and 12MM.

PP series (maline):

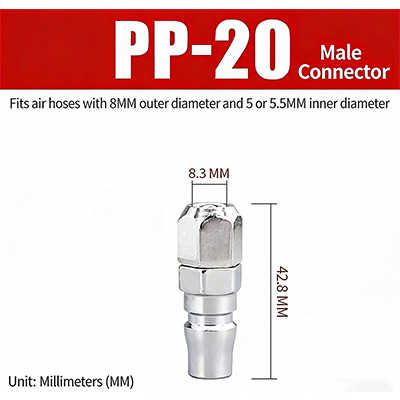

1. PP-20. It is suitable for trachea with an outer diameter of 8 mm, an inner diameter of 5 mm or 5.5 mm, with a top width of 8.3 mm and an overall length of 42.8 mm.

2. PP-30. It is suitable for the trachea with an outer diameter of 10 mm and an inner diameter of 6.5 mm, with a top width of 10.3 mm and a total length of 44.3 mm.

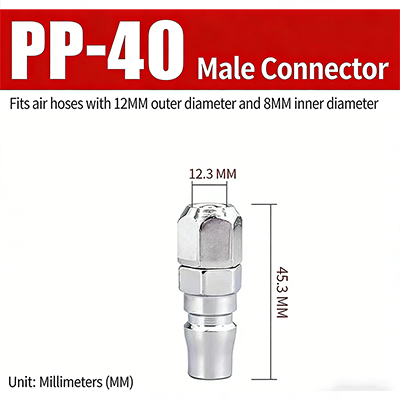

3. PP-40. It is suitable for the trachea with an outer diameter of 12 mm and an inner diameter of 8 mm, with a top width of 12.3 mm and a total length of 45.3 mm.

SP series (main head):

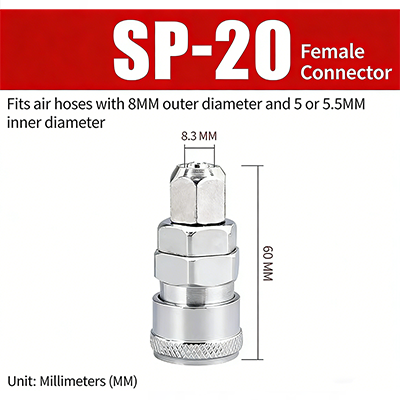

1. SP-20. Suitable for trachea with an outer diameter of 8 mm and an inner diameter of 5 mm or 5.5 mm, with a top width of 8.3 mm and a total length of 60 mm.

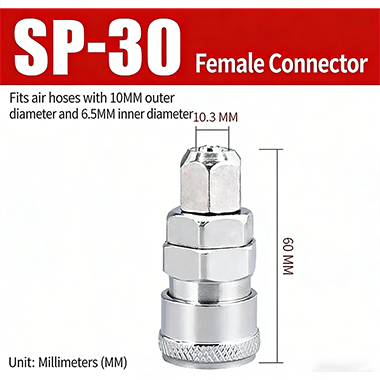

2. SP-30. It is suitable for trachea with an outer diameter of 10 mm and an inner diameter of 6.5 mm, with a top width of 10.3 mm and an overall length of 60 mm.

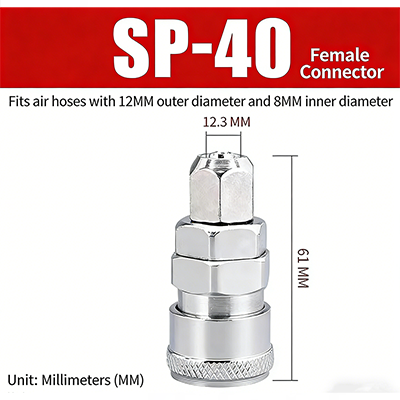

3. SP-40. It is suitable for trachea with an outer diameter of 12 mm and an inner diameter of 8 mm, with a top width of 12.3 mm and an overall length of 61 mm.

PP–SP Series C-Type Quick Couplings with JIS PT Thread has a C-type quick-plug structure. The male and female heads can be matched at will, and it can be plugged in and connected, which is very convenient. The joint adopts surface electroplating treatment, with the internal copper core, which is not only corrosion-resistant, but also wear-resistant, which improves the durability of the joint and prolongs the service life.

As a professional supplier of pneumatic tool accessories in China, Genuinsky's products are standardized and guaranteed. With perfect pre-sale and after-sales service, you can rest assured to buy and use.
