Ball valve for air compressor

Genuinsky's Ball valve for air compressor is specially designed for air compressor scenarios. It is mainly used for safety regulation, efficient distribution and reliable isolation in compressed air. It is the core fluid control component in the compressed air system.

The whole series of Ball valve for air compressor is made of brass, which is corrosion-resistant, hard and sealed. It can maintain stability in a complex working environment, and it is not easy to pollute the pipeline due to rust.

There are six models to choose from in the whole series, which basically covers all kinds of connection scenarios:

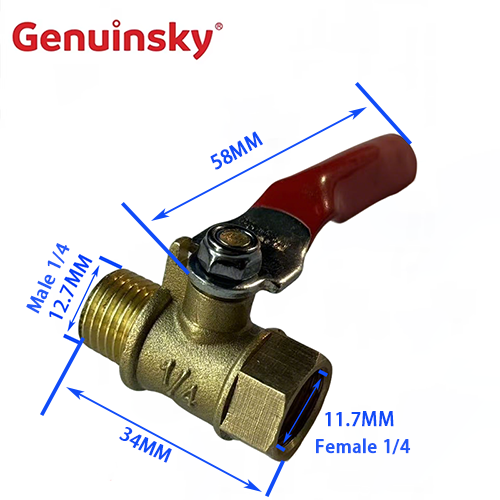

1. Male thread + internal thread model, one end of the product is Male thread 1/4, with a diameter of 12.7MM, and the other end is Female thread 1/4, with a diameter of 11.7MM, the total length of the valve body is 34MM, and the handle length is 58MM, which can be adapted to air compressors. The transfer of different-diameter pipelines.

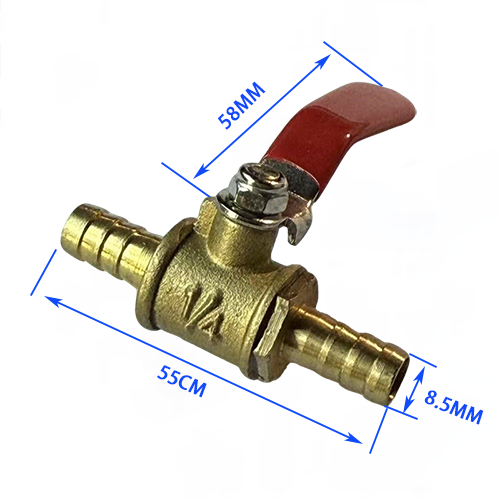

2. Double pagoda model, the connector diameter at both ends is 8.5MM, the total length of the valve body is 55MM, and the handle length is 58MM. You can directly insert the pneumatic tool hose without additional joint assistance.

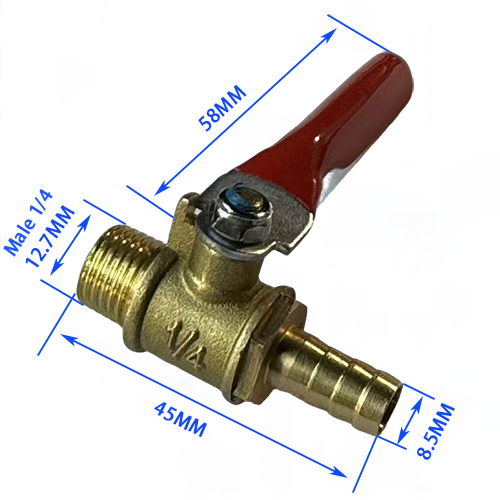

3. Male thread + pagoda model, one end of the product is Male thread 1/4, with a diameter of 12.7MM, and the other end is an 8.5MM pagoda head, the total length of the valve body is 45MM, and the handle length is 58MM, which is suitable for the transfer of hard pipes and hoses, mainly used for the pipeline of air compressors and pneumatic tools. Connect.

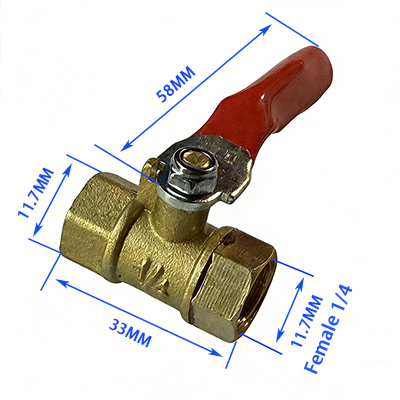

4. Double internal thread type, both ends are Female thread 1/4, the diameter is 11.7MM, the total length of the valve body is 33MM, and the length of the handle is 58MM, which can be adapted to the pipeline docking of the narrow internal space in the equipment.

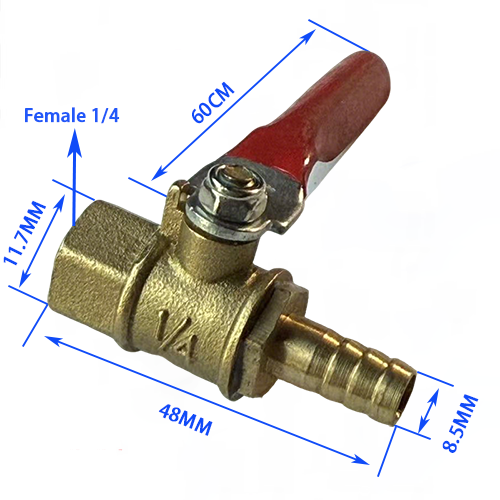

5. Female thread + pagoda model, one end of the product is Female thread 1/4, with a diameter of 11.7MM, and the other end is an 8.5MM pagoda head, the total length of the valve body is 48MM, and the handle length is 60MM, which is mainly suitable for the internal thread interface of the air compressor and the transfer of the hose.

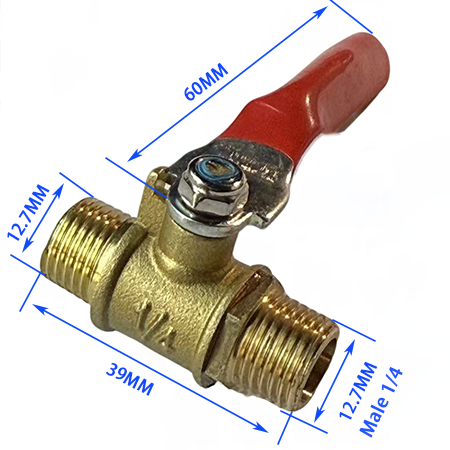

6. Double external thread model, the product ends are Male thread 1/4, the diameter is 12.7MM, the total length of the valve body is 39MM, and the length of the handle is 60MM, which is mainly used for the hard pipe docking of the main circuit of the air compressor.

The design of the product itself also has many advantages. First, the Ball valve for air compressor adopts a quarter-turn rotation structure, and the handle can be rotated 90° to complete the rapid opening and off of the airflow. The length of the handle in the series products is basically 58-60. MM, users can easily operate with anti-slip gloves at work. Second, the design of the full-diameter valve core can allow the compressed air to pass through the valve smoothly and minimize the loss of air pressure. As a professional supplier of pneumatic tools in China, Genuinsky is also very professional in the research and development and production of pneumatic accessories. The newly launched Ball valve for air compressor can become an important assistant in water supply and drainage, HVAC, pneumatic equipment and other scenarios. , improve the efficiency and stability of installation.
