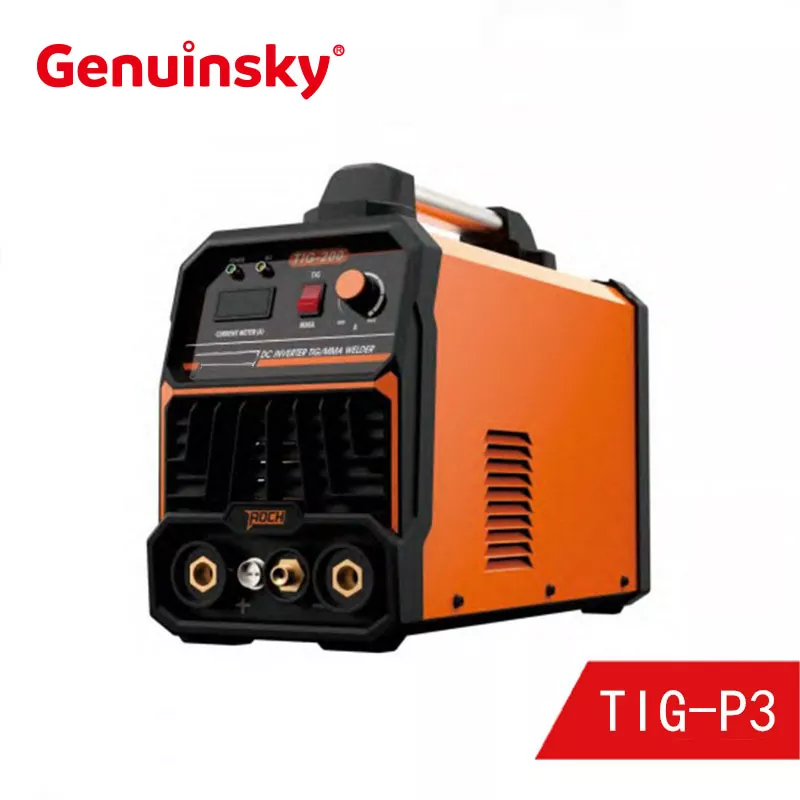

Genuinsky is a China manufacturer & supplier who produces TIG Inverter Welder IGBT P3 with many years of experience. Hope to build business relationship with you. This TIG/MMA-P3 Inverter TIG Welding Machine, adopt IGBT technology.Traditional type. Both TIG and MMA are available in this machine. Anti-stick, hot start and ARC force functions are available in MMA function. Fore-flow, post-flow, up-slope and down-slope can be options for TIG function. HF ARC starting and Simple operation and smooth welding experience.
| MODEL | TIG/MMA-160 P3 | TIG/MMA-180 P3 | TIG/MMA-200 P3 |
| INPUT POWER | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |
| RATED INPUT CAPACITY (KVA) | 3 | 3.8 | 4.2 |
| RATED INPUT CURRENT(A) | 19 | 23 | 26 |
| OPEN CIRCUIT VOLTAGE (V) | 72 | 72 | 72 |
| OUTPUT CURRENT RANGE(A) | 10-160A@TIG;20-140A@MMA | 10-180A@TIG;20-160A@MMA | 10-200A@TIG;20-180A@MMA |
| RATED DUTY CYCLE @25℃ | 60% | 60% | 60% |
| TUNGSTEN ELECTRODE(mm) | 1.6-3.2 | 1.6-3.2 | 1.6-3.2 |
| SUITABLE ELECTRODE(mm) | 1.6-4.0 | 1.6-4.0 | 1.6-5.0 |
| PROTECTION GRADE | IP215 | IP215 | IP215 |
| INSULATION CLASS | F | F | F |
| N.W./G.W. (KG) | 9.6/10.1 | 10.2/11 | 10.8/11.5 |
| PACKAGE DIMENSION(mm) | 435*240*305 | 435*240*305 | 475*240*305 |
| LOADING QTY(20FT/40FT/40HC) | 1000/2000/2400 | 1000/2000/2400 | 950/1900/2300 |
Adopting IGBT (Insulated Gate Bipolar Transistor) technology, compared with traditional types, it has higher efficiency, better stability, and more precise current control, which can effectively improve welding quality and reduce energy consumption.
Efficient arc starting method: Using HF (high-frequency) arc starting technology, it can quickly and stably ignite the arc, reduce arc starting time and damage to the welded parts, and improve welding efficiency and success rate.
TIG/MMA-P3 Inverter TIG Welding Machine. TIG Inverter Welder IGBT P3 is easy to operate, relatively small in size, and suitable for household users to perform some simple metal welding work, such as connecting metal parts of self-made furniture, repairing metal utensils, etc. For small processing shops, it can meet some small batch and diversified welding needs, and is an economical and practical welding equipment.
