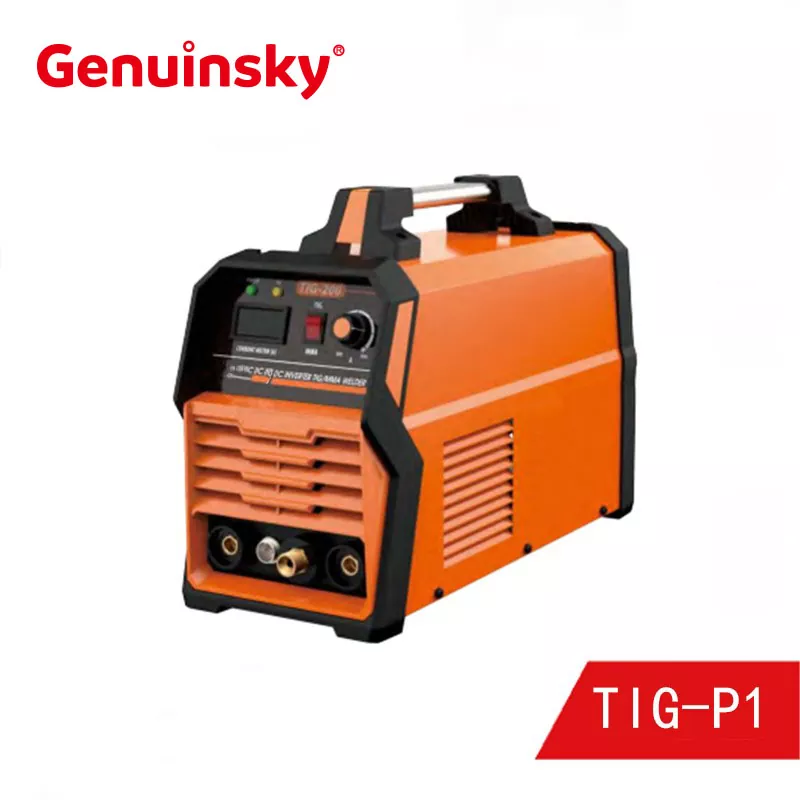

As one of the leading manufacturers and suppliers of TIG Welding Machine Inverter IGBT P1 in China, we focus on providing high-standard products to meet your various needs. This TIG/MMA-P1 Inverter TIG Welding Machine, adopt IGBT technology.Traditional type. Both TIG and MMA are available in this machine. Anti-stick, hot start and ARC force functions are available in MMA function. Fore-flow, post-flow, up-slope and down-slope can be options for TIG function. HF ARC starting, and Simple operation and smooth welding experience.
| MODEL | TIG/MMA-160 P1 | TIG/MMA-180 P1 | TIG/MMA-200 P1 |
| INPUT POWER | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |
| RATED INPUT CAPACITY (KVA) | 3 | 3.8 | 4.2 |
| RATED INPUT CURRENT(A) | 19 | 23 | 26 |
| OPEN CIRCUIT VOLTAGE (V) | 72 | 72 | 72 |
| OUTPUT CURRENT RANGE(A) | 10-160A@TIG;20-140A@MMA | 10-180A@TIG;20-160A@MMA | 10-200A@TIG;20-180A@MMA |
| RATED DUTY CYCLE @25℃ | 60% | 60% | 60% |
| TUNGSTEN ELECTRODE(mm) | 1.6-3.2 | 1.6-3.2 | 1.6-3.2 |
| SUITABLE ELECTRODE(mm) | 1.6-4.0 | 1.6-4.0 | 1.6-5.0 |
| PROTECTION GRADE | IP215 | IP215 | IP215 |
| INSULATION CLASS | F | F | F |
| N.W./G.W. (KG) | 9.6/10.1 | 10.2/11 | 10.8/11.5 |
| PACKAGE DIMENSION(mm) | 435*240*305 | 435*240*305 | 475*240*305 |
| LOADING QTY(20FT/40FT/40HC) | 1000/2000/2400 | 1000/2000/2400 | 950/1900/2300 |
Adopting IGBT (Insulated Gate Bipolar Transistor) technology, compared with traditional types, it has higher efficiency, better stability, and more precise current control, which can effectively improve welding quality and reduce energy consumption.
It has two welding functions: TIG (tungsten inert gas welding) and MMA (manual metal arc welding), which can meet different welding needs. In MMA function, it also has anti stick, hot start, and arc force functions, which help prevent welding rods from sticking to the work piece during the welding process, facilitate arc initiation, and adjust the stiffness and penetration of the arc, making welding easier and more stable.
TIG/MMA-P1 Inverter TIG Welding Machine. Different like MMA and MIG. TIG welding machines don't use certain welding consumables like electrode or MIG wire to connect welding pieces. The way which TIG welding machines use is to melt the welding piece and make them solid together. As some metal pieces to be welded might be very thin. small current is always high requested as lower as 10A for TIG machines.
