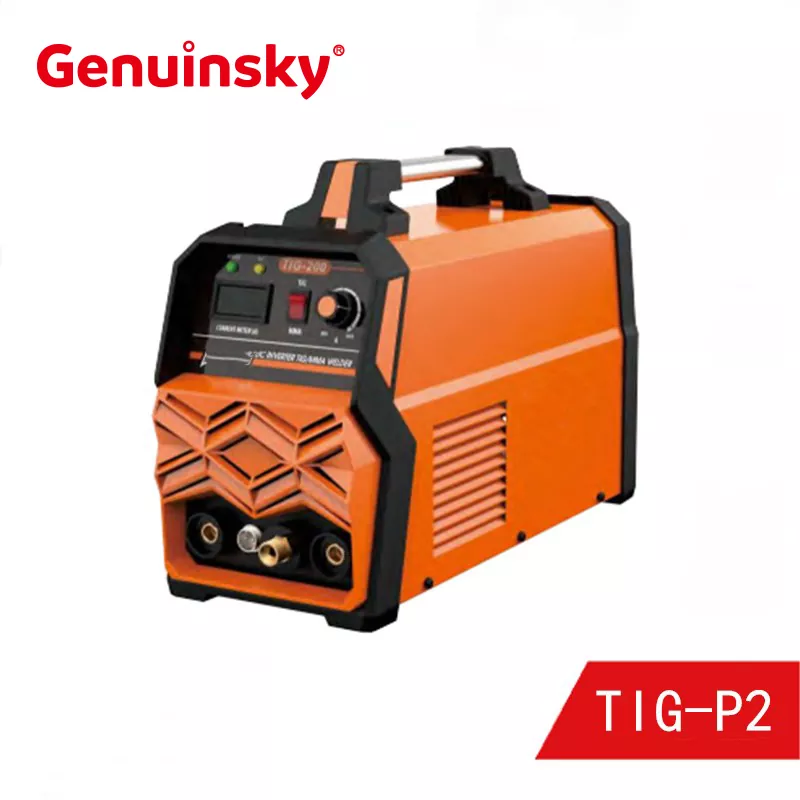

The company is committed to providing customers with high-quality and reliable TIG Welding Machine Inverter IGBT P2. This TIG/MMA-P2 Inverter TIG Welding Machine, adopt IGBT technology.Traditional type. Both TIG and MMA are available in this machine. Anti-stick, hot start and ARC force functions are available in MMA function. Fore-flow, post-flow, up-slope and down-slope can be options for TIG function.HF ARC starting and Simple operation and smooth welding experience.
| MODEL | TIG/MMA-160 P2 | TIG/MMA-180 P2 | TIG/MMA-200 P2 |
| INPUT POWER | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |
| RATED INPUT CAPACITY (KVA) | 3 | 3.8 | 4.2 |
| RATED INPUT CURRENT(A) | 19 | 23 | 26 |
| OPEN CIRCUIT VOLTAGE (V) | 72 | 72 | 72 |
| OUTPUT CURRENT RANGE(A) | 10-160A@TIG;20-140A@MMA | 10-180A@TIG;20-160A@MMA | 10-200A@TIG;20-180A@MMA |
| RATED DUTY CYCLE @25℃ | 60% | 60% | 60% |
| TUNGSTEN ELECTRODE(mm) | 1.6-3.2 | 1.6-3.2 | 1.6-3.2 |
| SUITABLE ELECTRODE(mm) | 1.6-4.0 | 1.6-4.0 | 1.6-5.0 |
| PROTECTION GRADE | IP215 | IP215 | IP215 |
| INSULATION CLASS | F | F | F |
| N.W./G.W. (KG) | 9.6/10.1 | 10.2/11 | 10.8/11.5 |
| PACKAGE DIMENSION(mm) | 435*240*305 | 435*240*305 | 475*240*305 |
| LOADING QTY(20FT/40FT/40HC | 1000/2000/2400 | 1000/2000/2400 | 950/1900/2300 |
Adopting IGBT (Insulated Gate Bipolar Transistor) technology, compared with traditional types, it has higher efficiency, better stability, and more precise current control, which can effectively improve welding quality and reduce energy consumption.
Efficient arc starting method: Using HF (high-frequency) arc starting technology, it can quickly and stably ignite the arc, reduce arc starting time and damage to the welded parts, and improve welding efficiency and success rate.
TIG Welding Machine Inverter IGBT P2 is Easy to operate and good welding experience: With a simple interface and control system, even beginners can quickly get started. At the same time, the arc is stable and the welding speed is uniform during the welding process, which can bring a smooth welding experience to the user and help ensure the consistency of welding quality.
