High-Purity PU Explosion-Proof Air Hose

As a professional pneumatic tool supplier in China, Genuinsky is also very professional in the research and development and production of pneumatic accessories. The newly launched High-Purity PU Explosion-Proof Air Hose has the advantages of high quality and excellent performance, so that The operation of industrial pneumatic system equipment is more stable.

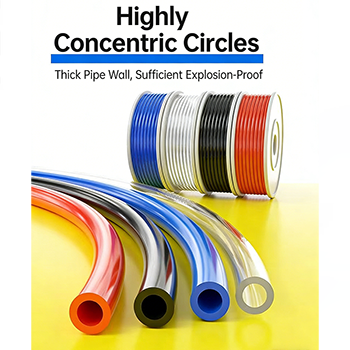

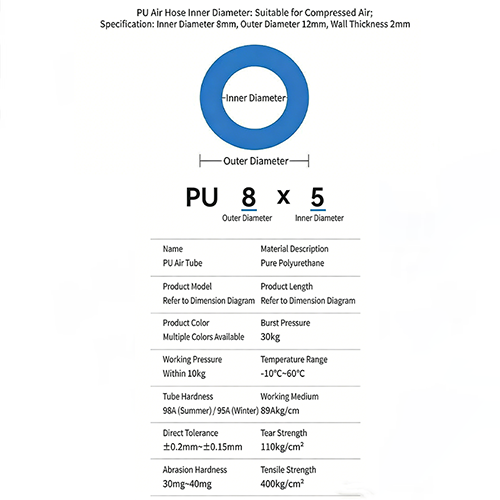

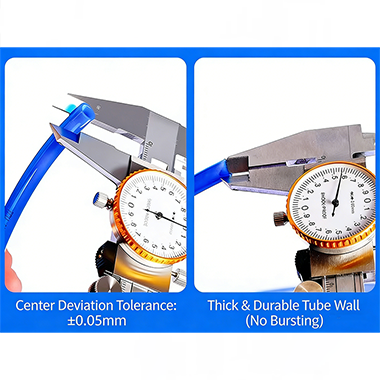

First of all, from the core parameters, High-Purity PU Explosion-Proof Air Hose is specially designed for compressed air transmission. The core specification of the product is PU 8×5 (inner diameter 8mm, outer diameter 12mm, wall thickness 2mm), which can Adapt to the interface needs of most pneumatic tools and automation equipment on the market. Its own highly concentric structure can ensure the stable transmission of airflow, and at the same time, it can make the trachea itself have better explosion resistance. In the field of automobile manufacturing and electronic component assembly, the safety and stability requirements for pipelines are relatively high, so the stability of the trachea is very important.

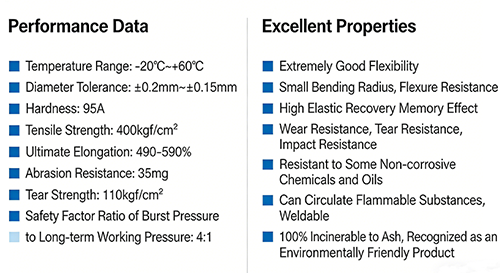

Secondly, from the core performance, the working temperature range of High-Purity PU Explosion-Proof Air Hose can cover -20℃~60℃, the working pressure can reach 10kgf, and the safety coefficient of blasting pressure and working pressure is 4: 1. Far exceeding the basic standards of the industry, it can avoid the risk of pipe bursting under high-pressure use scenarios, so it can adapt to the vast majority of industrial environments.

At the same time, the hardness of the product is 95A, the tensile strength can reach 400kgf/cm², the fracture elongation is 490%-590%, and the tear strength is 110kgf/cm², which is not only supportive, but also has excellent flexibility. It can withstand frequent bending and pulling in use, so that the production The product is more durable, which greatly extends the service life of the product.

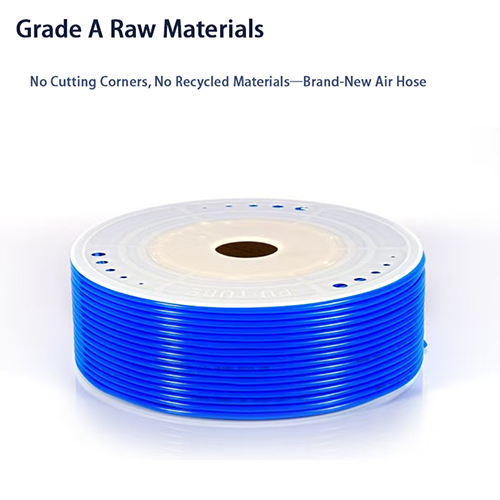

Then, in terms of materials and processes, High-Purity PU Explosion-Proof Air Hose adopts A-level new high-purity PU raw materials, which can be adapted to some non-corrosive chemicals and oils, and can also transport flammable substances, and welding scenarios can also be suitable. With, the range of use is very wide. At the same time, the trachea can be burned 100% into ashes, which is more environmentally friendly.

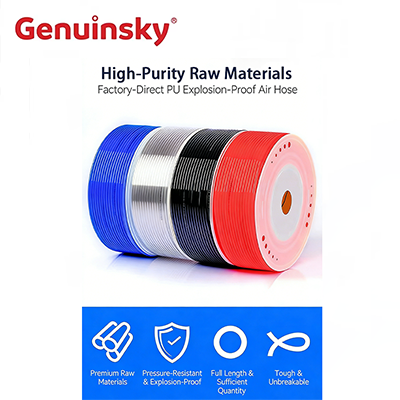

Finally, there are many colors to choose from, such as blue, white, black, red and other colors, which is convenient for users to distinguish pipelines according to different airways and functions, which is more convenient and efficient for management and use. In the fields of industrial manufacturing production lines, laboratories and precision instruments, light industry and packaging industries, Genuinsky's High-Purity PU Explosion-Proof Air Hose can provide a strong guarantee for the stable operation of equipment, production With the advantages of high-quality raw materials, precision technology and excellent performance, it is an ideal choice for all kinds of pneumatic scenarios.
