Genuinsky as one of the competitive MIG Inverter Welder Gasless IGBT M2manufacturers and suppliers in China. If you are interested in our product, please contact us quickly!

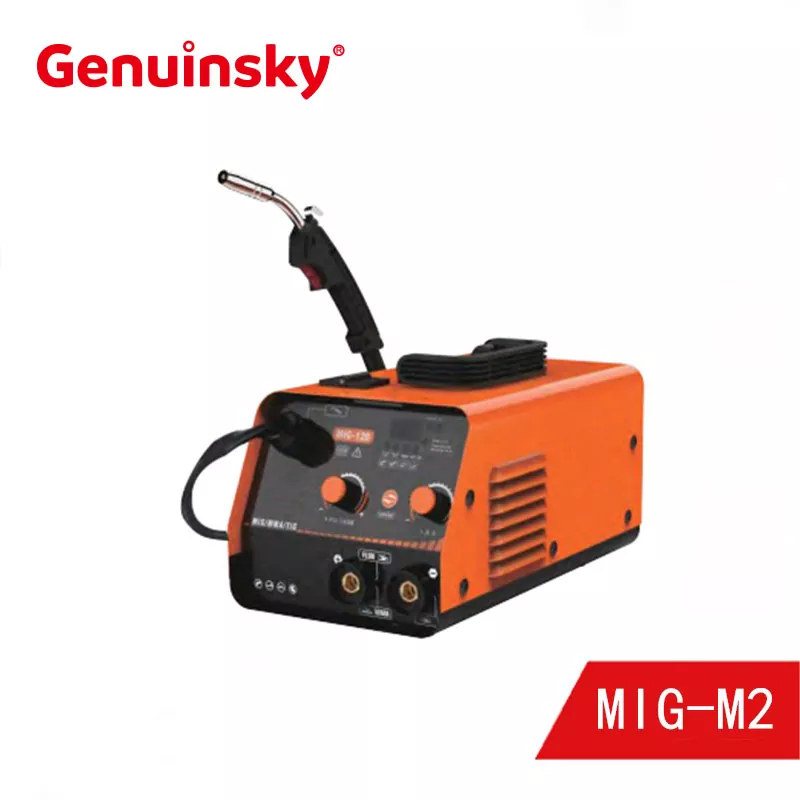

This MMA/TIG/MIG-M2 Inverter MIG Welding Machine, Adopt IGBT half-bridge technology. Synergic control. Compact structure, light weight, easy to carry. This model obtains both manual mode and synergic mode. Arc initiation easily and keep stable status for a long time. Gas-less machine, which is suitable for flux wire. Fan cooled ensuring better performance and durability. 3 functions in 1 machines,including MIG,MMA and TIG lift.
| MODEL | MIG/MMA/TIG-100 M2 | MIG/MMA/TIG-120 M2 |
| INPUT POWER | 220V 50/60HZ | 220V 50/60HZ |
| RATED INPUT CAPACITY (KVA) | 3.1 | 3.9 |
| INPUT CURRENT (A) | 13.9 | 20 |
| OPEN CIRCUIT VOLTAGE (V) | 60 | 60 |
| MIG OUTPUT CURRENT RANGE(A) | 20-100 | 20-120 |
| MMA OUTPUT CURRENT RANGE(A) | 20-100 | 20-120 |
| TIG OUTPUT CURRENT RANGE (A) | 15-100 | 15-120 |
| RATED DUTY CYCLE @25℃ | 40% | 40% |
| SUITABLE WELDING WIRE(mm) | 0.8/1.0 | 0.8/1.0 |
| SUITABLE ELECTRODE(mm) | 1.6~2.5 | 1.6~2.5 |
| PROTECTION GRADE | F | F |
| INSULATION CLASS | IP215 | IP215 |
| N.W/G.W. (KG) | 7/7.5 | 7/7.5 |
| PACKAGE DIMENSION(mm) | 365*235*235 | 365*235*235 |
| LOADING QTY. (20FT/40FT/40HC) | 1385/2775/3370 | 1385/2775/3370 |
MIG mode: supports 0.6-1.2mm flux cored wire (no gas) or solid wire (requires external gas cylinder);
MMA mode: compatible with 2.5-5.0mm welding rods (carbon steel/stainless steel);
TIG mode: high-frequency arc ignition+current ramp up, compatible with DC TIG welding (requires external argon gas).
MIG (gas-less) flux cored welding wire self-protection, used for outdoor fence welding and automotive sheet metal repair.
MMA manual arc welding is used for pipeline maintenance and repair welding of heavy structural components.
TIG non high frequency arc initiation (contact arc initiation), current slow rise to prevent adhesion, used for precision welding of stainless steel thin plates (0.5-3mm).
