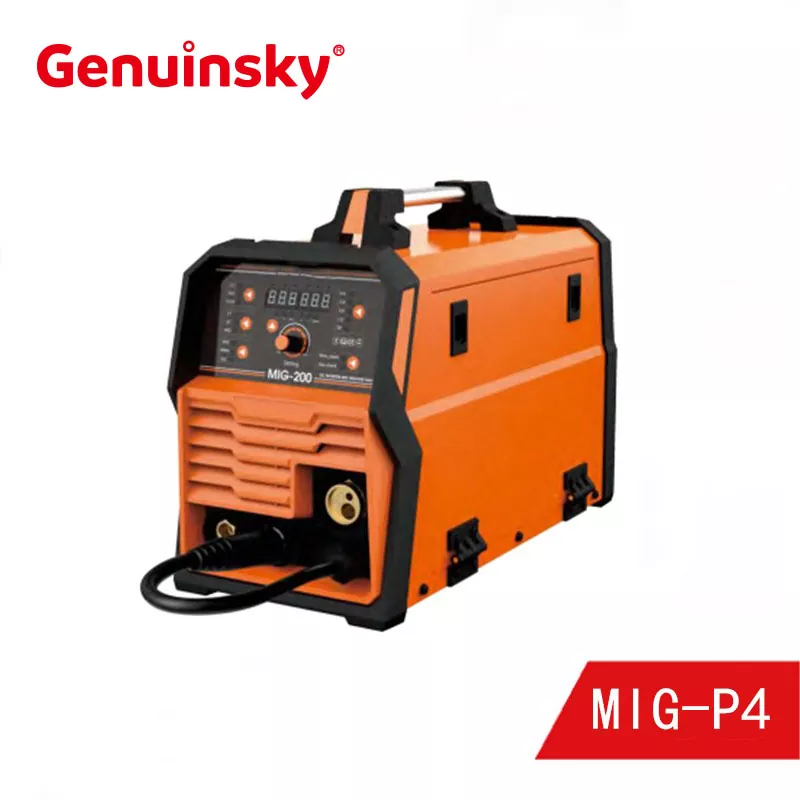

High Quality MIG Inverter Welding Machine 1kg 5kg P4 Manufacturer. Get a quick quote now! This MIG/MMA/TIG-P4 Inverter MIG Welding Machine,Synergic machine. Adopt A-type LCD. Portable MIG welding machine, convenient to carry. Digital control, only one knob on front panel, synergic adjustment. Arc initiation easily and keep stable status for long time. Low splash and smooth in weld joint. Gas-less machine, which is suitable for flux wire. Fan cooled ensuring better performance and durability. Three functions in one machine, including MIG,MMA and TIG lift.
| MODEL |
MIG/MMA/TIG- 140 P4 |
MIG/MMA/TIG- 160 P4 |
MIG/MMA/TIG- 180 P4 |
MIG/MMA/TIG- 200 P4 |
| INPUT POWER | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |
| RATED INPUT CAPACITY (KVA) | 4.7 | 5.7 | 6.7 | 7.7 |
| RATED INPUT CURRENT(A) | 21.5 | 25.7 | 30.3 | 35.1 |
| OPEN CIRCUIT VOLTAGE (V) | 60 | 60 | 60 | 60 |
| MIG OUTPUT CURRENT RANGE(A) | 35-140 | 35-160 | 35-180 | 35-200 |
| MMA OUTPUT CURRENT RANGE(A) | 20-140 | 20-160 | 20-180 | 20-200 |
| TIG OUTPUT CURRENT RANGE (A) | 15-140 | 15-160 | 15-180 | 15-200 |
| RATED DUTY CYCLE @25℃ | 50% | 50% | 50% | 50% |
| SUITABLE WELDING WIRE(mm) | 0.6/0.8/1.0 | 0.6/0.8/1.0 | 0.6/0.8/1.0 | 0.6/0.8/1.0/1.2 |
| SUITABLE ELECTRODE(mm) | 1.6~3.2 | 1.6~3.2 | 1.6~4.0 | 1.6~4.0 |
| PROTECTION GRADE | F | F | F | F |
| INSULATION CLASS | IP21S | IP21S | IP21 | IP215 |
| N.W./G.W. (KG) | 13.8/14.5 | 14.2/15 | 15/15.6 | 16/16.8 |
| PACKAGE DIMENSION (mm) | 540*255*450 | 540*255*450 | 540*255*450 | 540*255*450 |
| LOADING QTY. (20FT/40FT/40HC | 450/900/1100 | 450/900/1100 | 450/900/1100 | 450/900/1100 |
MIG/MMA/TIG-P4 Inverter MIG Welding Machine Usage scenario, In industrial manufacturing. Ship deck welding.All position welding of pressure pipelines. Aluminum alloy body repair (MIG pulse+argon protection).
For professional users who pursue "high efficiency, high stability, and intelligent operation" (such as shipyards and energy equipment enterprises), this model has significant advantages in productivity improvement and long-term operation and maintenance cost control, and is a model of welding equipment in the Industry 4.0 era.
