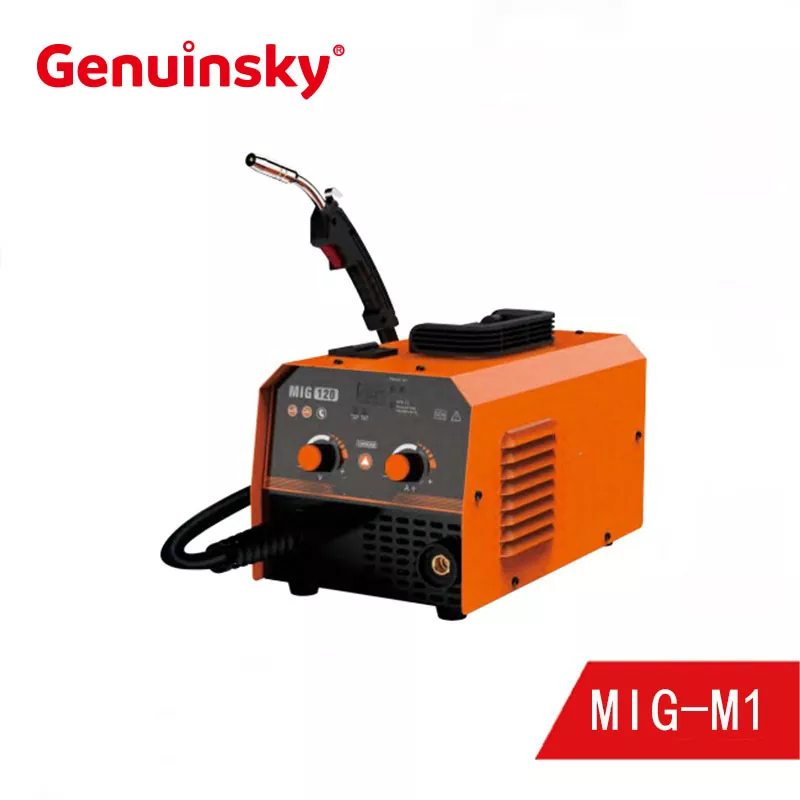

This MIG-M1 Inverter MIG Welding Machine, adopt IGBT half-bridge technology, Synergic control. Compact structure, light weight, easy to carry. This model obtains both manual mode and synergic mode. Arc initiation easily and keep stable status for a long time. Gas-less machine, which is suitable for flux wire. Fan cooled ensuring better performance and durability.
| MODEL | MIG-100 M1 | MIG-120 M1 |
| INPUT POWER | 220V 50/60HZ | 220V 50/60HZ |
| RATED INPUT CAPACITY (KVA) | 3.1 | 3.9 |
| RATED INPUT CURRENT (A) | 13.9 | 17.5 |
| OPEN CIRCUIT VOLTAGE (V) | 60 | 60 |
| MIG OUTPUT CURRENT RANGE (A) | 35-100 | 35-120 |
| RATED DUTY CYCLE@25℃ | 40% | 40% |
| SUITABLE WELDING WIRE(mm) | 0.8/1.0 | 0.8/1.0 |
| SUITABLE ELECTRODE(mm) | 1.6~2.5 | 1.6~2.5 |
| PROTECTION GRADE | F | F |
| INSULATION CLASS | IP215 | IP215 |
| N.W./G.W. (KG) | 5.5/6.2 | 5.8/6.5 |
| PACKAGE DIMENSION(mm) | 350*230*240 | 350*230*240 |
| LOADING QTY. (20FT/40FT/40HC) | 1450/2900/3500 | 1450/2900/3500 |
IGBT half bridge topology: converts input AC power to DC power through high-frequency inverter (20-50kHz), and then outputs precise welding current through PWM modulation.
The wire is filled with fluoride/metal powder, and a protective gas (such as CO ₂) is released from the arc without the need for an external gas cylinder.
Outdoor windy environment (such as bridge maintenance) without gas interference;
Reduce overall costs (saving on gas cylinder rental and transportation expenses).
With suitable size welding wires,MIG welding machines can always make the welding effect much better than MMA. So when high quality is pursued, MIG welding machines would be a better choice.
