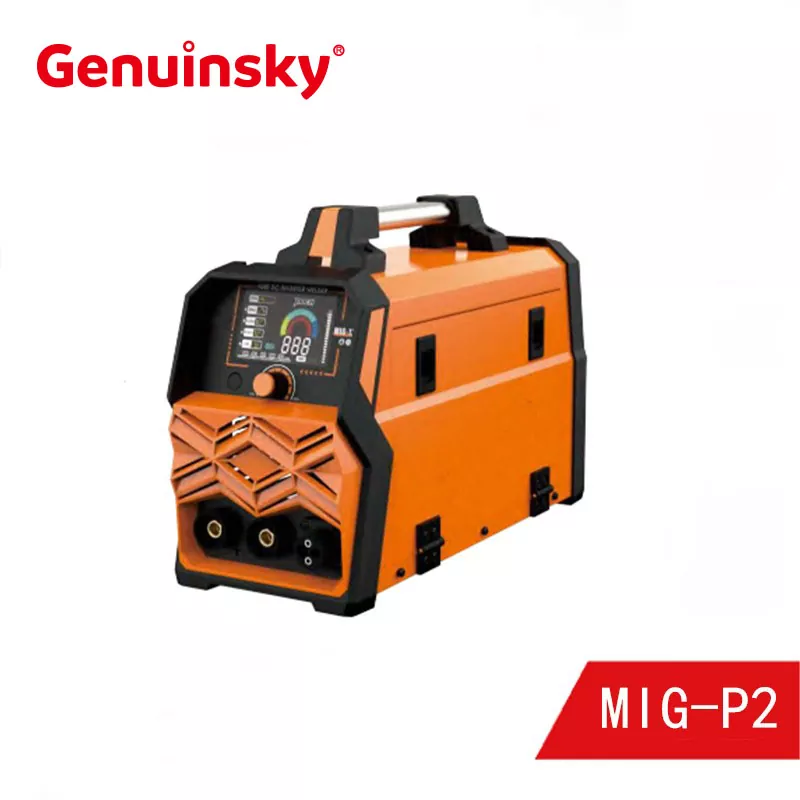

Welcome to wholesale high quality MIG Inverter Welding Machine Gasless LCD P2 made in China from our factory. We will deliver quickly!This MIG/MMA/TIG-P2 Inverter MIG Welding Machine,Synergic machine. Adopt A-type LCD. Portable MIG welding machine, convenient to carry. Digital control, only one knob on front panel, synergic adjustment. Arc initiation easily and keep stable status for long time. Low splash and smooth in weld joint. Gas-less machine, which is suitable for flux wire. Fan cooled ensuring better performance and durability. Three functions in one machine, including MIG,MMA and TIG lift.
| MODEL | MIG/MMA/TIG-100 P2 | MIG/MMA/TIG-120 P2 |
| INPUT POWER | 220V 50/60HZ | 220V 50/60HZ |
| RATED INPUT CAPACITY (KVA) | 3.1 | 3.9 |
| RATED INPUT CURRENT(A) | 13.9 | 17.5 |
| OPEN CIRCUIT VOLTAGE (V) | 60 | 60 |
| MIG OUTPUT CURRENT RANGE(A) | 35-100 | 35-120 |
| MMA OUTPUT CURRENT RANGE (A) | 20-100 | 20-120 |
| TIG OUTPUT CURRENT RANGE (A) | 15-100 | 15-120 |
| RATED DUTY CYCLE @25℃ | 40% | 40% |
| SUITABLE WELDING WIRE(mm) | 0.8/1.0 | 0.8/1.0 |
| SUITABLE ELECTRODE(mm) | 1.6~2.5 | 1.6~2.5 |
| PROTECTION GRADE | F | F |
| INSULATION CLASS | IP21S | IP215 |
| N.W/G.W. (KG) | 7/7.5 | 7.5/8 |
| PACKAGE DIMENSION(mm) | 420*200*410 | 420*200*410 |
| LOADING QTY. (20FT/40FT/40HC) | 950/1900/2300 | 950/1900/2300 |
MIG (gas-less) flux cored welding wire self-protection, used for outdoor fence welding and automotive sheet metal repair.
MMA manual arc welding is used for pipeline maintenance and repair welding of heavy structural components.
TIG non high frequency arc initiation (contact arc initiation), current slow rise to prevent adhesion, used for precision welding of stainless steel thin plates (0.5-3mm).
MIG mode: supports 0.6-1.2mm flux cored wire (no gas) or solid wire (requires external gas cylinder);
MMA mode: compatible with 2.5-5.0mm welding rods (carbon steel/stainless steel);
TIG mode: high-frequency ARC ignition+current ramp up, compatible with DC TIG welding (requires external argon gas).
