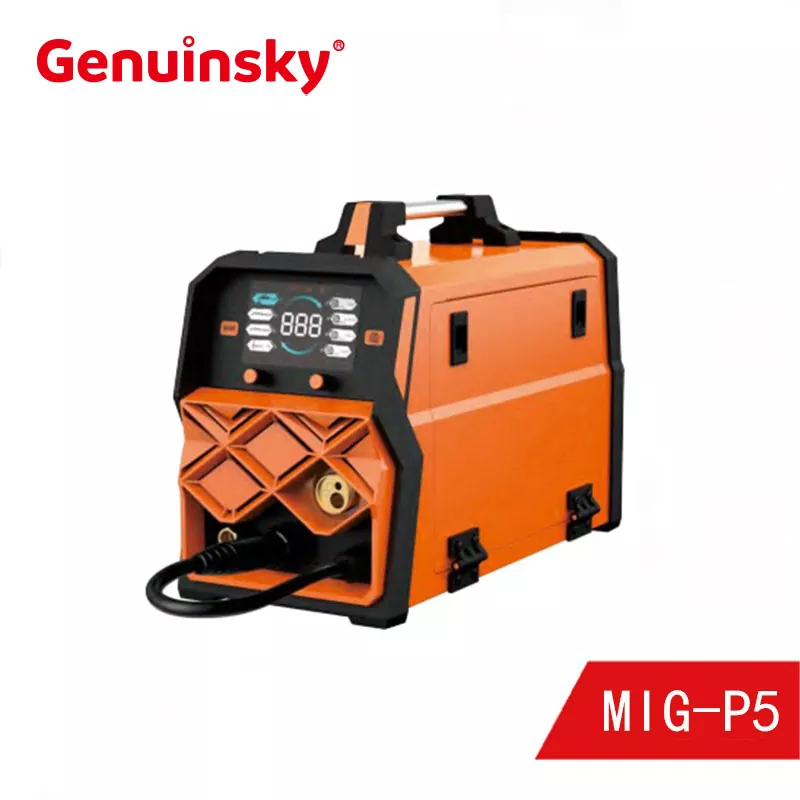

This MMA/TIG/MIG-P5 Inverter MIG Welding Machine, Synergic machine, Digital control. Both 1kg and 5kg are well used with this model. 15kg wire can also be supported by the circuit and wire feeder. Very stable internal structure and reliable performance. ARC initiation easily and keep stable status for a long time. Low splash and smooth in weld joint. This machine has both manual mode and synergic mode. Fan cooled ensuring better performance and durability. Three functions in one machine,including MIG,MMA and TIG lift.
| MODEL |
MIG/MMA/TIG- 140 P5 |
MIG/MMA/TIG- 160 P5 |
MIG/MMA/TIG- 180 P5 |
MIG/MMA/TIG- 200 P5 |
| INPUT POWER | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |
| RATED INPUT CAPACITY (KVA) | 4.7 | 5.7 | 6.7 | 7.7 |
| RATED INPUT CURRENT(A) | 21.5 | 25.7 | 30.3 | 35.1 |
| OPEN CIRCUIT VOLTAGE (V) | 60 | 60 | 60 | 60 |
| MIG OUTPUT CURRENT RANGE(A) | 35-140 | 35-160 | 35-180 | 35-200 |
| MMA OUTPUT CURRENT RANGE (A) | 20-140 | 20-160 | 20-180 | 20-200 |
| TIG OUTPUT CURRENT RANGE (A) | 15-140 | 15-160 | 15-180 | 15-200 |
| RATED DUTY CYCLE @25℃ | 50% | 50% | 50% | 50% |
| SUITABLE WELDING WIRE(mm) | 0.6/0.8/1.0 | 0.6/0.8/1.0 | 0.6/0.8/1.0 | 0.6/0.8/1.0/1.2 |
| SUITABLE ELECTRODE(mm) | 1.6~3.2 | 1.6~3.2 | 1.6~4.0 | 1.6~4.0 |
| PROTECTION GRADE | F | F | F | F |
| INSULATION CLASS | IP21S | IP21 | IP21S | IP21S |
| N.W/G.W. (KG) | 13.8/14.5 | 14.2/15 | 15/15.6 | 16/16.8 |
| PACKAGE DIMENSION(mm) | 540*255*450 | 540*255*450 | 540*255*450 | 540*255*450 |
| LOADING QTY. (20FT/40FT/40HC) | 450/900/1100 | 450/900/1100 | 450/900/1100 | 450/900/1100 |
MMA/TIG/MIG-P5 Inverter MIG Welding Machine Usage scenario, In industrial manufacturing. Ship deck welding.All position welding of pressure pipelines. Aluminum alloy body repair (MIG pulse+argon protection).
For professional users who pursue "high efficiency, high stability, and intelligent operation" (such as shipyards and energy equipment enterprises), this model has significant advantages in productivity improvement and long-term operation and maintenance cost control, and is a model of welding equipment in the Industry 4.0 era.
