Why choose Micro Mini Connector Series?

The product compatibility of Genuinsky's Micro Mini Connector Series is very wide, which can provide more stable and efficient connection work for precision fluid transmission. For example, automated industrial production lines, electronic manufacturing and other scenarios can be easily adapted.

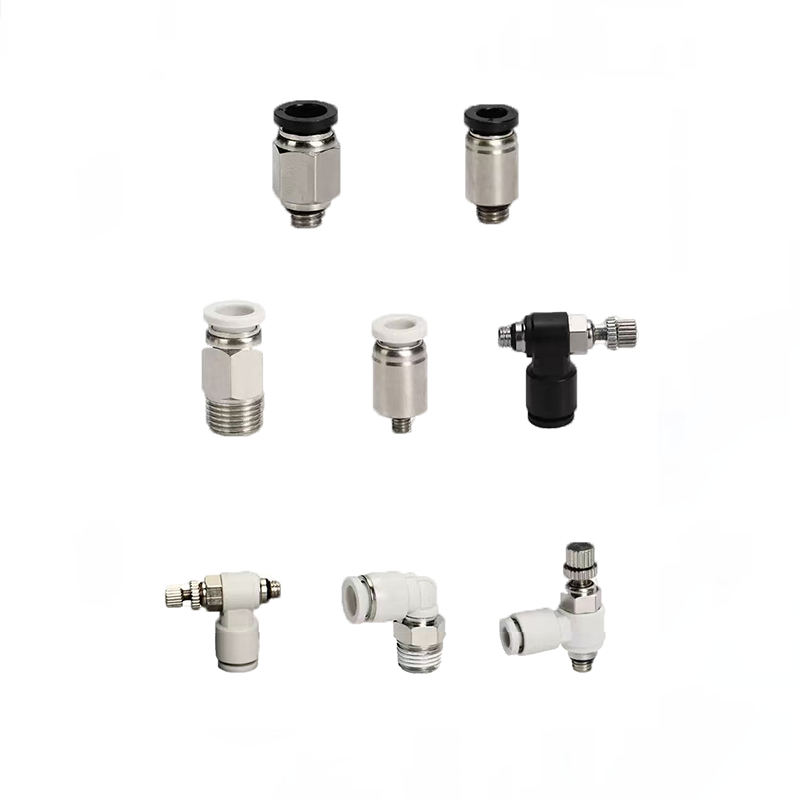

Genuinsky's Micro Mini Connector Series has a rich category combination, not a single product. The following is a specific description: First, the right-angled connector. It is generally suitable for pipeline requirements that require 90° steering, and this angle can save a certain amount of installation space. Second, the through connector. Due to the relatively small flow resistance, this kind of connector has high transmission efficiency. Third, the throttle valve joint. The flow adjustment setting of the connector can accurately control the flow output, which is suitable for equipment that needs to regulate speed and pressure. Fourth, multi-connect connector. Multi-pass means that it can cover the needs of three-way, four-way and other multiple-way diversions without the need for complex pipeline component splicing, which can provide more concise and efficient connection work. At the same time, in order to cover the needs of pipeline layout under complex working conditions, the joint with throttle valve supports 360° rotation adjustment, which means that it can break the limitation of the traditional joint angle fixation, and the direction of the trachea can be freely adjusted according to the installation space of the equipment. Different types of connectors can be adapted to different pipeline usage scenarios. Micro Mini Connector Series is no longer limited by the refinement of functions, so that the choice of connectors is no longer limited.

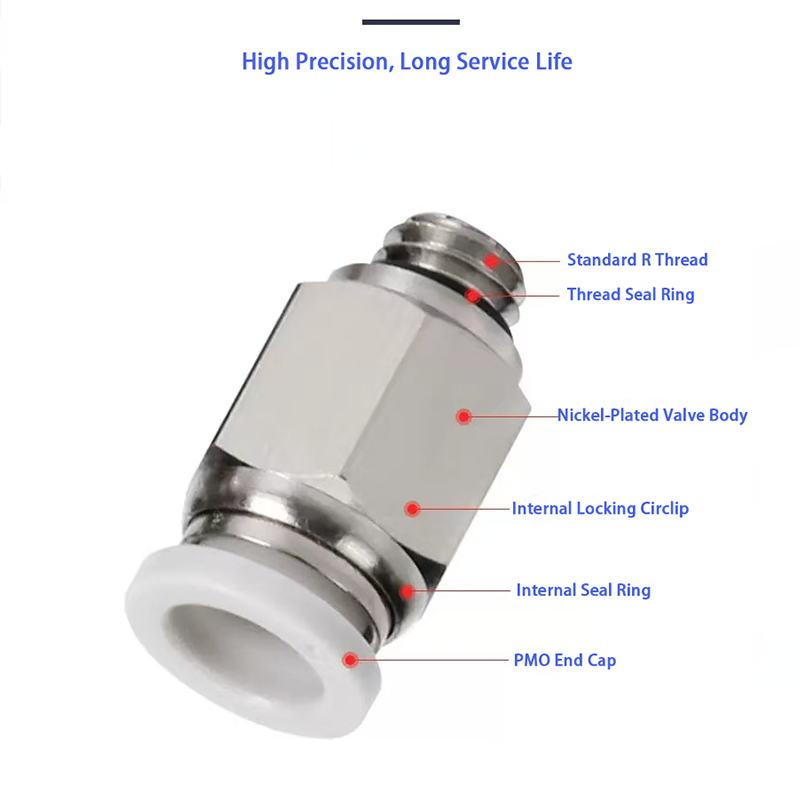

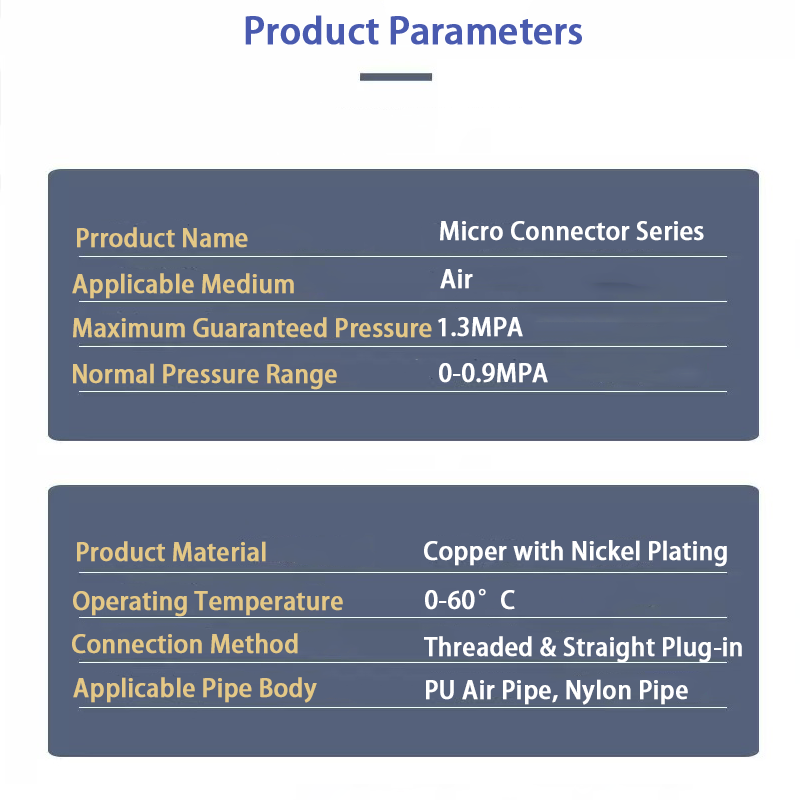

The tolerance range of Micro Mini Connector Series itself is in the temperature range of 0-60°C. In addition, the maximum guaranteed pressure can reach 1.32MPa, and the normal working pressure range is 0–0.9MPa. This fully covers the stable operation of pneumatic tools, automated cylinders and other equipment that require high-pressure working conditions. The design of Micro Mini Connector Series can accurately match the needs of industrial operations, and can be adapted to PU trachea and nylon tubes, which are mainstream tubes on the market. The design of this series of products gives it excellent sealing function. Judging from the overall design of the product, the joint material is made of nickel-plated copper valve body. The nickel-plated copper material has not only the excellent sealing of copper material, but also the good corrosion resistance of nickel-plated layer, so it can maintain the work even in the face of a humid or dusty environment for a long time. The stability of the work is not easy to be rusted, which affects the stability of the connection. The interior adopts a special concave sealing ring, which has a larger contact area, so the fit is higher and the sealing is stronger. At the same time, the product itself is designed with the standard R thread of the general industrial thread. At the same time, the combination of the standard R thread and the internal locking spring avoids the wear and leakage caused by loosening of parts, which can add double protection to the sealing work, which also means that the service life of the product is greatly extended. Finally, the thread of Micro Mini Connector Series is pre-coated with PTFE glue. The material of tetrafluoroethylene itself has very good chemical stability and certain lubricity, which means that it can not only optimize the sealing effect of the thread, but also reduce to a certain extent. Less thread wear and tear will further extend the service life of the product. From the material to the design, the Micro Mini Connector Series is to achieve good sealing, so that under the high-pressure working conditions of the pneumatic system, even high-frequency work can maintain the sealing effect of "drip-proof".

The connection of this series of products also adopts a dual way, which can be connected by thread tightening, or it can be connected by plug-in. The plug-in type can support the insertion of the trachea and lock, and the tube can be pulled out by pressing the end cover. This simple connection method greatly improves work efficiency and saves installation and disassembly time. NINGBO GENUINSKY Company is a company specializing in the production of cleaning accessories. It strictly controls the production quality of Micro Mini Connector Series in production to ensure that the products have the advantages of diverse structure, complete specifications and reliable performance. Make it an efficient choice for airway work scenarios. At the same time, the company integrates manufacturing, development and sales, with excellent quality, preferential price and excellent after-sales service, so that users can buy with more peace of mind.
