PF–SF Series C-Type Quick Couplings with JIS PT Thread

Genuinsky's newly launched PF–SF Series C-Type Quick Couplings with JIS PT Thread is a kind of pneumatic tool accessory and one of the important tools for pneumatic pipeline connection.

This series of products has complete specifications, and the whole series adopts Japanese PT threads, which can be compatible with the interfaces of mainstream pneumatic equipment on the market and perfectly match different pneumatic pipelines.

PF series (max:

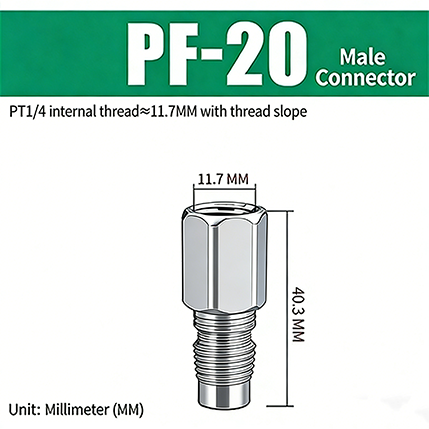

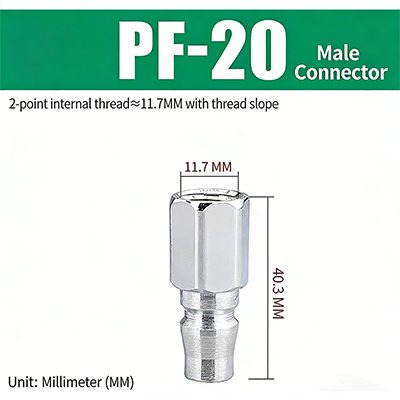

1. PF-20. Imperial pipe thread G1/4", with thread slope, the diameter of the thread part is about 11.7 mm, and the total length of the product is 40.3 mm.

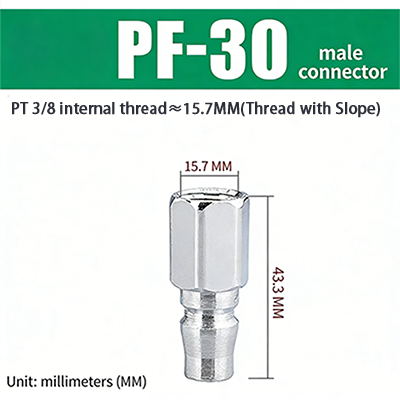

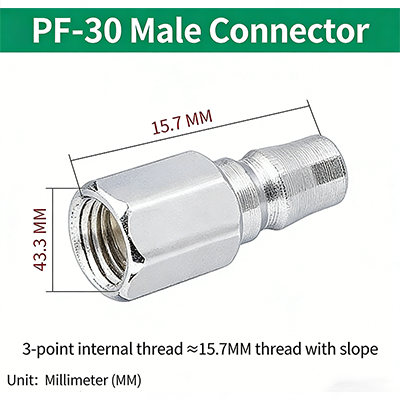

2. PF-30. British pipe thread G3/8", with thread slope, the diameter of the thread part is about 15.7 mm, and the total length of the product is 43.3 mm.

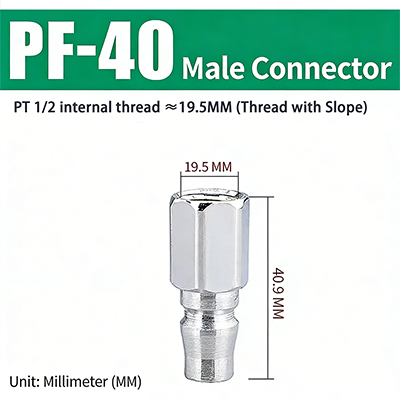

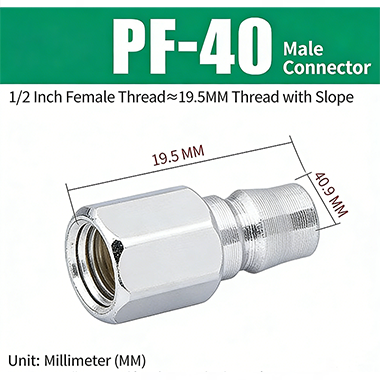

3. PF-40. British pipe thread G1/2", with thread slope, the diameter of the thread part is about 19.5 mm, and the total length of the product is 40.9 mm.

SF series (mother head):

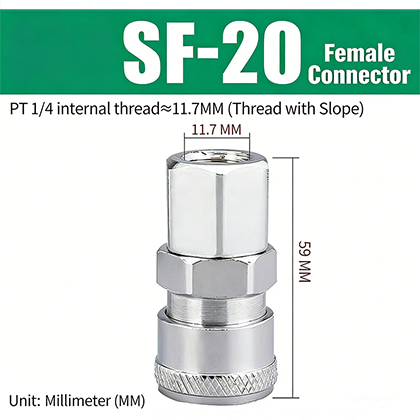

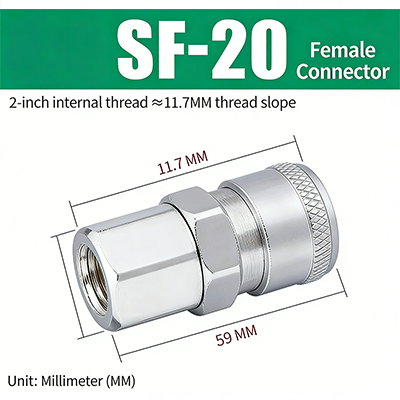

1. SF-20. The imperial pipe thread is G1/4", the diameter of the threaded part is about 11.7 mm, and the total length of the product is 59 mm.

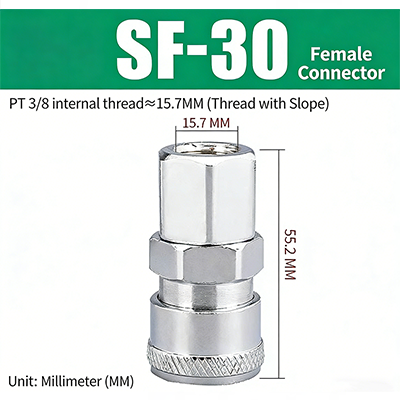

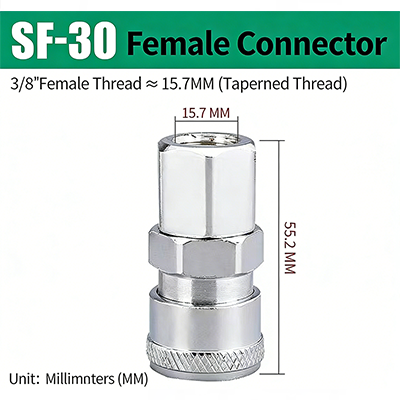

2. SF-30. 3/8-inch internal thread, the diameter of the threaded part is about 15.7 mm, and the product length is 55.2 mm.

3. SF-40. British pipe thread G1/2", the diameter of the thread part is about 19.5 mm, and the total length of the product is 56.9 mm.

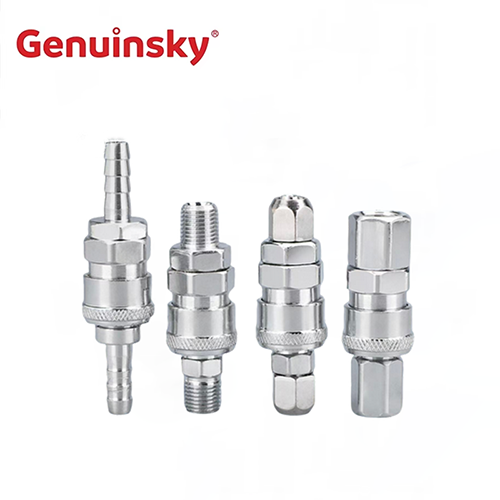

PF–SF Series C-Type Quick Couplings with JIS PT Thread has a C-type quick-plug structure. The male and female heads can be matched at will, and it can be plugged in and connected, which is very convenient. The joint adopts surface electroplating treatment, with the internal copper core, which is not only corrosion-resistant, but also wear-resistant, which improves the durability of the joint and prolongs the service life.

As a professional supplier of pneumatic tool accessories in China, Genuinsky's products are standardized and guaranteed. With perfect pre-sale and after-sales service, you can rest assured to buy and use.
